Sandvik Coromant CP-25BL-20-11 CoroTurn™ Prime shank tool for turning

R 2 428,80 inc. vat
In stock
SKU
7100745
CoroTurn® Prime shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® Prime shank tool for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 152.4mm
TQ - Torque 4Nm
WT - Weight Of Item 1.105kg
OAL - Overall Length 152.4mm
OHX - Maximum Overhang 76.2mm
LSC - Clamping Length 114.76mm
KAPR - Tool Cutting Edge Angle 25deg
RMPX - Maximum Ramping Angle 23deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 37.64mm
WF - Functional Width 38.05mm
HF - Functional Height 31.75mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 11mm
RE - Corner Radius 0.79375mm
Insert Thickness 5mm
H - Shank Height 31.75mm
B - Shank Width 31.75mm
APMX - Depth Of Cut Maximum 3mm
ORDCODE CP-25BL-20-11
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B2020_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:16:00.000
MTP - Clamping Type Code D
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_TLB11_1
Hand L

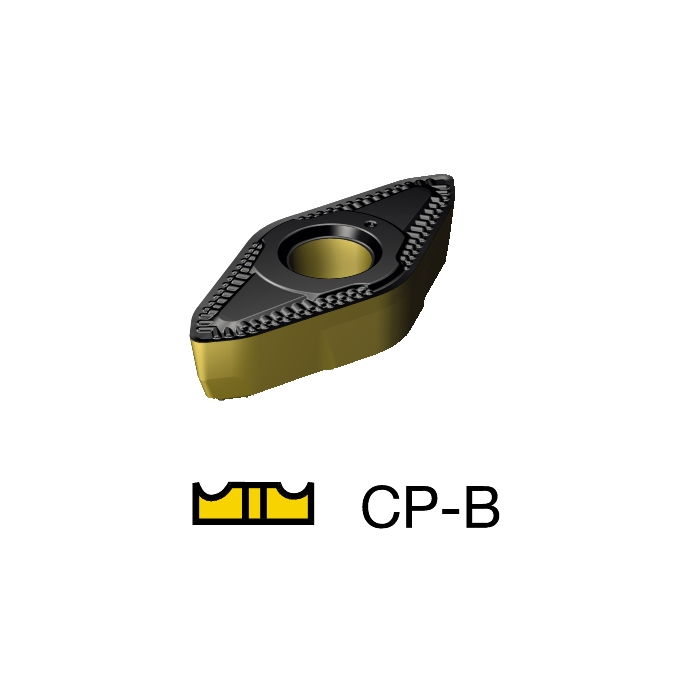

MIID - Master Insert Identification CP-B1108
IFS - Insert Mounting Style Code 2
SSC - Insert Seat Size Code CP-B11
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
