R 989,00
inc. vat
In stock
SKU
5741388

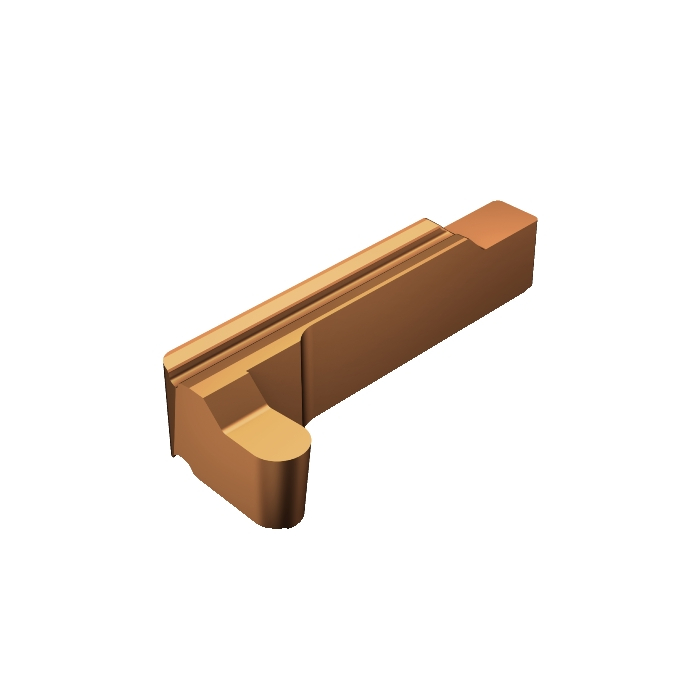

CoroCut® 1-2 insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for profiling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 23.6g |
KAPR - Tool Cutting Edge Angle | 92.5deg |
RMPX - Maximum Ramping Angle | 90deg |
DMIN - Minimum Bore Diameter | 62mm |
BAMS - Machine Side Body Angle | 90deg |
AN - Clearance Angle Major | 7deg |
RE - Corner Radius | 1.5mm |
Insert Thickness | 4.35mm |
CW - Cutting Width | 3mm |
CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
GAN - Insert Rake Angle | 0deg |
CDX - Cutting Depth Maximum | 9mm |
APMX - Depth Of Cut Maximum | 1.3mm |
RETOLL - Corner Radius Lower Tolerance | -0.05mm |
RETOLU - Corner Radius Upper Tolerance | 0.05mm |
DAXN - Minimum Axial Groove Outside Diameter | 147mm |
ORDCODE | RG123L1-0300-0015-RS1115 |
CHANGEDATE | 2022-09-07 11:41:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 9 |
SSC - Insert Seat Size Code | LX |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCLX1_1 |
Grade | 1115 |
COATING | PVD TiAlN+TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | RS |
CEDC - Cutting Edge Count | 1 |
