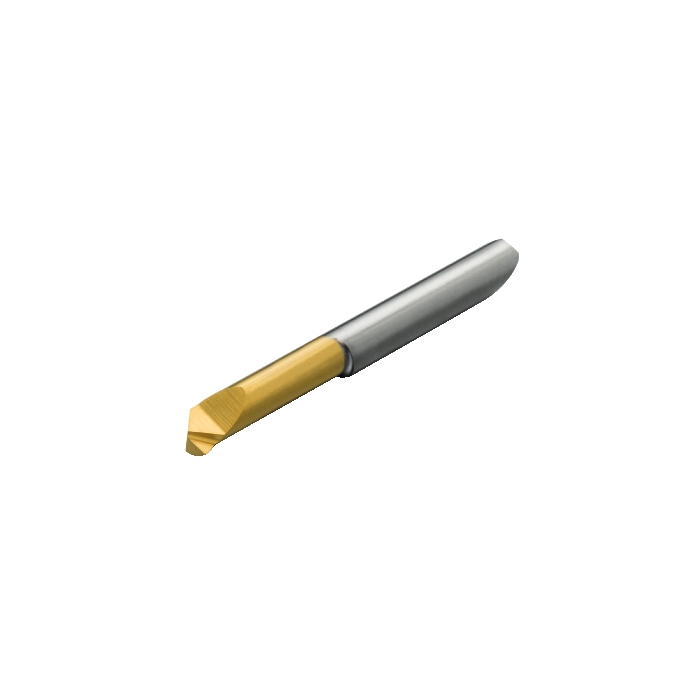

Sandvik Coromant CXS-04T090-15-3212L 1025 CoroTurn™ XS solid carbide tool for turning

Name: Sandvik Coromant CXS-04T090-15-3212L 1025 CoroTurn™ XS solid carbide tool for turning
SKU: 6765383
Price: 625.60 ZAR
Availability: OutOfStock

Be the first to review this product

R 625,60 inc. vat

Out of stock

SKU

6765383

CoroTurn® XS solid carbide tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for turning

More Information

More Information
DCON - Connection Diameter	4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	29.25mm
WT - Weight Of Item	13.5g
OAL - Overall Length	32.71mm
OHX - Maximum Overhang	15mm
LSC - Clamping Length	14.25mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	17deg
DMIN - Minimum Bore Diameter	3.2mm
WF - Functional Width	1.45mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
RE - Corner Radius	0.15mm
LU - Usable Length	12mm
APMX - Depth Of Cut Maximum	0.2mm
WB - Body Width	2.55mm
ORDCODE	CXS-04T090-15-3212L 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F4000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-03-09 15:07:00.000
Hand	L
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
