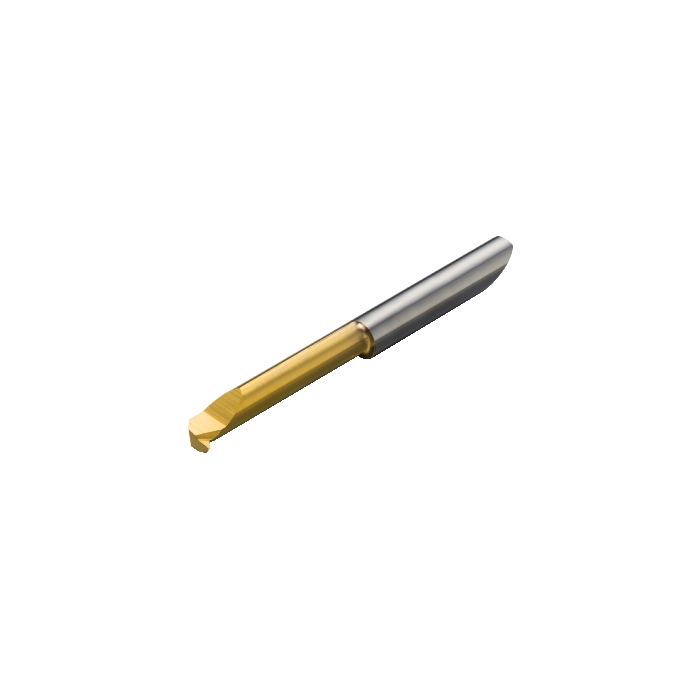

Sandvik Coromant CXS-07TE98-20-7240L 1025 CoroTurn™ XS solid carbide tool for turning

R 994,75 inc. vat
In stock
SKU
6765382
CoroTurn® XS solid carbide tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for turning
More Information
DCON - Connection Diameter 7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 62.25mm
WT - Weight Of Item 31.3g
OAL - Overall Length 68.31mm
OHX - Maximum Overhang 43mm
LSC - Clamping Length 19.25mm
KAPR - Tool Cutting Edge Angle 98deg
RMPX - Maximum Ramping Angle 44deg
DMIN - Minimum Bore Diameter 7.2mm
WF - Functional Width 4.15mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
RE - Corner Radius 0.2mm
LU - Usable Length 40mm
APMX - Depth Of Cut Maximum 2.5mm
WB - Body Width 4.15mm
ORDCODE CXS-07TE98-20-7240L 1025
ADINTMS - Adaptive Interface Machine Direction M_SIMA_F7000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-03-09 15:07:00.000
Hand L
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
