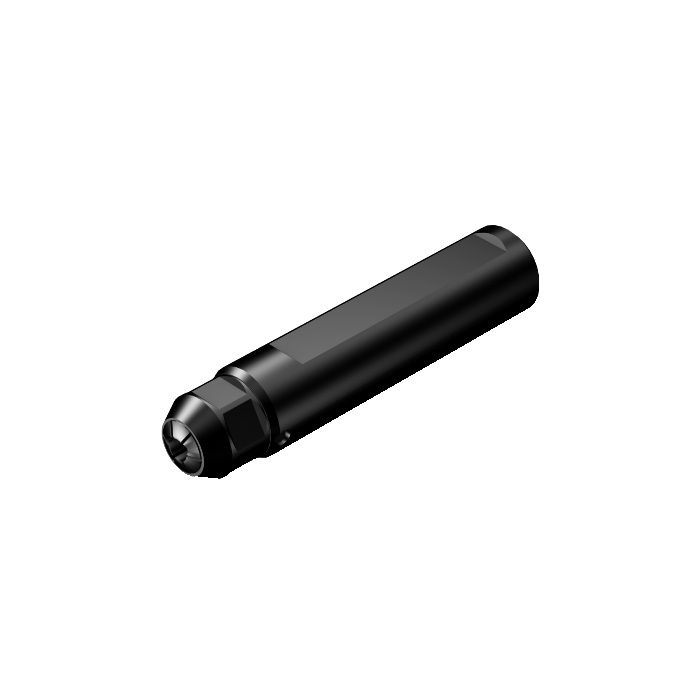

Sandvik Coromant CXS-A1000-05-X Cylindrical shank with flat to CoroTurn™ XS adaptor
Next
Sandvik Coromant CXS-A0625-05-X Cylindrical shank with flat to CoroTurn™ XS adaptor
Previous
![Sandvik Coromant CXS-A1000-05-X Cylindrical shank with flat to CoroTurn™ XS adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/61068c05a/sandvik-coromant-cxs-a1000-05-x-cylindrical-shank-with-flat-to-coroturntm-xs-adaptor.jpg)
![Sandvik Coromant CXS-A0625-05-X Cylindrical shank with flat to CoroTurn™ XS adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/610660ea9/sandvik-coromant-cxs-a0625-05-x-cylindrical-shank-with-flat-to-coroturntm-xs-adaptor.jpg)
R 4 288,35
inc. vat
In stock
SKU
7047014
Cylindrical shank with flat to CoroTurn® XS adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank with flat to CoroTurn® XS adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DCON - Connection Diameter | 5mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 110mm |
BD - Body Diameter | 14.5mm |
LB - Body Length | 90mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 20Nm |
WT - Weight Of Item | 226.5g |
OAL - Overall Length | 110mm |
OHX - Maximum Overhang | 26mm |
LSC - Clamping Length | 64mm |
BAWS - Workpiece Side Body Angle | 0deg |
OHN - Minimum Overhang | 26mm |
WF - Functional Width | 0mm |
HF - Functional Height | 0mm |
H - Shank Height | 18.05mm |
LPR - Protruding Length | 110mm |
ORDCODE | CXS-A0750-05-X |
ADINTMS - Adaptive Interface Machine Direction | M_CYLM02_R7500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SIMA_F5000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-08 07:04:00.000 |
Hand | N |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
