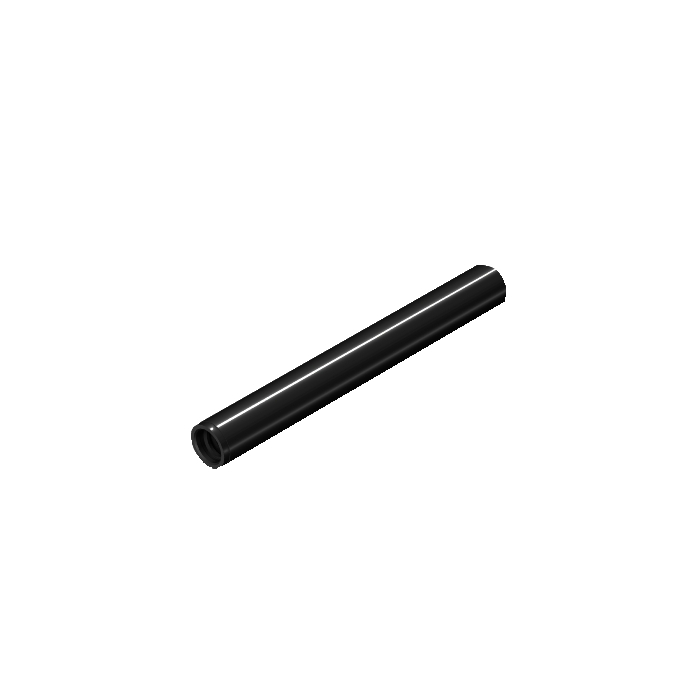

Sandvik Coromant EH20-A19.7-SS-120 Cylindrical shank to Coromant EH adaptor
R 4 763,30
inc. vat
In stock
SKU
6731077
Cylindrical shank to Coromant EH adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to Coromant EH adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 19.2mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 120mm |
| BD - Body Diameter | 19.7mm |
| LB - Body Length | 120mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 50Nm |
| RPMX - Rotational Speed Maximum | 400001/min |
| WT - Weight Of Item | 0.38kg |
| OAL - Overall Length | 120mm |
| OHX - Maximum Overhang | 73mm |
| LSC - Clamping Length | 117mm |
| ORDCODE | EH20-A19.7-SS-120 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G1970_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SAT01_A0200_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-02-09 14:21:00.000 |
| TCDCON - Connection Diameter Tolerance | h6 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
