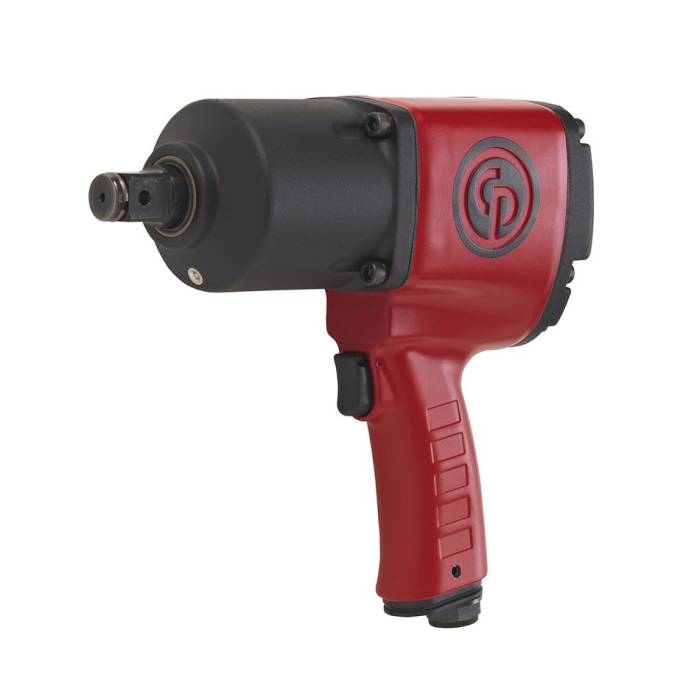

CP7630 3/4" IMPACT WRENCH
R 26 619,98
inc. vat
In stock
SKU
CP-8941076300
Reliable nationwide shipping
Delivery in 4 - 5 days
CP7630 3/4" IMPACT WRENCH
Benefits
- Powerful
- Comfort & compact
- Versatile
- Best ratio price performance in its class
CE Certificate
Operators Manual
Exploded View
Safety Instructions & Data Sheets
| Metric | Imperial | |
|---|---|---|
| Model | CP7630 | |
| Part number | 8941076300 | |
| Actual air consumption | 9.7 l/s | 21 cfm |
| Air inlet thread size | 3/8 " | |
| Average air consumption | 2.4 l/s | 5.1 cfm |
| Clutch type | Twin hammer | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 6900 rpm | |
| Free speed air consumption | 22.5 l/s | 47.66 cfm |
| Handle type | Pistol | |
| Length | 240 mm | 9.45 " |
| Maximum Torque (reverse) | 1500 Nm | 1100 ft.lbs |
| Min. hose size | 13 mm | 1/2 " |
| Net weight | 4.8 kg | 10,648 lb |
| Socket retainer | Friction ring + hole | |
| Sound Power | 116.3 db(A) | |
| Sound pressure | 105.3 db(A) | |
| Square drive | 3/4 " | |
| Vibration | 9.8 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 3 m/s² | |
| Working Torque Range (fwd) | 177 - 1,097 Nm | 130 - 810 ft.lbs |
- 1500 Nm – 1100 ft / lbs
- Well balanced minimizing wrist strain
- Handle fits perfectly in the hand
- Suited for all maintenance applications
- Vans & Heavy vehicles mechanical repair
- MRO applications
