CP6613 + ATC PACK - PNEUMATIC NUTRUNNER
Special Price
R 212 032,40
inc. vat
Regular Price
R 265 040,39
inc. vat
In stock
SKU
CP-6151800120
Reliable nationwide shipping
Delivery in 4 - 5 days

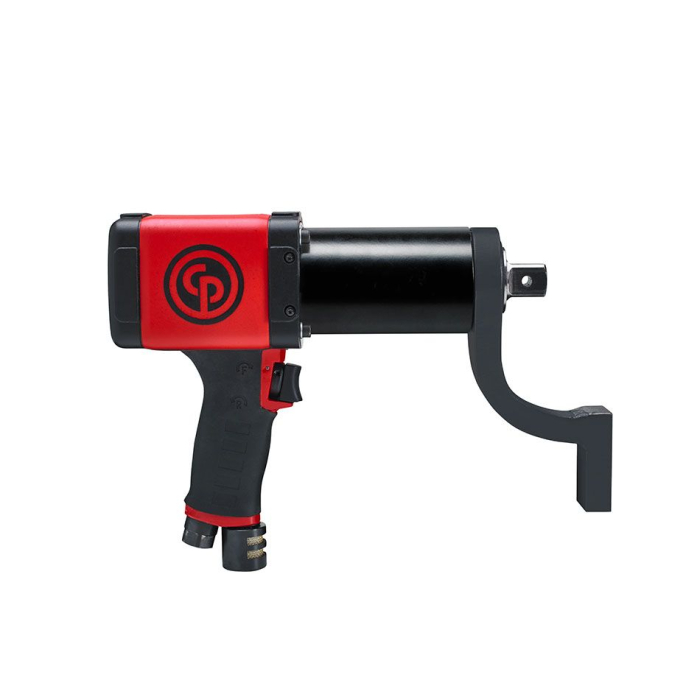

CP6613 + ATC PACK
Pneumatic nutrunner - 960 ft.lbs / 1,300 Nm max.
Benefits
- Robust
- Accurate
- Strong lightweight reaction arm
- Lightweight
CE Certificate
Operators Manual
Exploded View
Safety Instructions & Data Sheets
CP66 Series - Leaflet
| Metric | Imperial | |
|---|---|---|
| Model | CP6613 | |
| Part number | 6151800090 | |
| Air inlet thread size | 3/8 " | |
| Bolt size | 20-27 mm | 3/4 - 1-1/16 " |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Sound standard | ISO 15744 | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 20 rpm | |
| Free speed air consumption | 23 l/s | 48 cfm |
| Handle type | Pistol | |
| Height | 212 mm | 8.34 " |
| Length | 254 mm | 10 " |
| Maximum Torque (fwd) | 1300 Nm | 960 ft.lbs |
| Maximum Torque (reverse) | 1300 Nm | 960 ft.lbs |
| Min. hose size | 13 mm | 1/2 " |
| Net weight | 3.7 kg | 8.3 lb |
| Reaction bar | S-type | |
| Reversible | Reversible | |
| Side to centre | 32 mm | 1.26 " |
| Socket retainer | Hole | |
| Sound Power | 101 db(A) | |
| Sound pressure | 90 db(A) | |
| Sound uncertainty | 3 db(A) | |
| Square drive | 19 mm | |
| Torque preset # | Multi | |
| Vibration | <2,5 m/s² | |
| Vibration ISO | ISO 28927-2 | |
| Weight Including Reaction Arm | 4.4 kg | 10.1 lb |
| Weight w/o Reaction Arm | 3.7 kg | 8.3 lb |
| Width | 72 mm | 2.83 " |
| Working Torque Range (fwd) | 320 - 1300 Nm | 236 - 960 ft.lbs |
| Working Torque Range (reverse) | 320 - 1300 Nm | 236 - 960 ft.lbs |
- Replaceable protective cover
- Reliable Gearbox: 13,000 cycles before maintenance
- Vane type high-performance air motor same as an industrial impact wrench
- Capable of reaching high torque accuracy
- Different reaction arm types and shapes available
- Reduce operator fatigue and risks of MSDs
