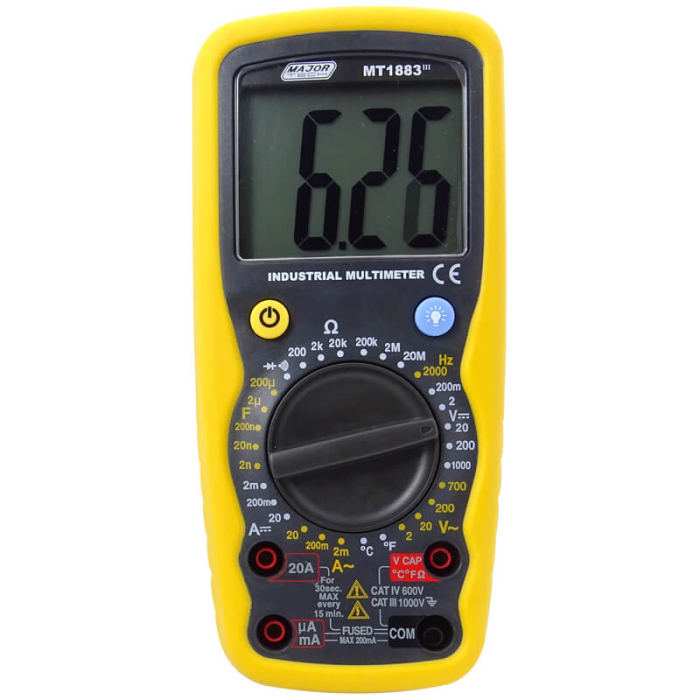

Major Tech MT1883 General Purpose DMM, CATIV 600V, IP67
The MT1883 is an average responding 2000 count DMM and has a large backlit LCD display. The meter measures AC voltage up to 700V and DC voltage up to 1000V, fused AC and DC current up to 10 Amps, temperature measurement in°C or°F, resistance, frequency measurement and capacitance measurement, plus a diode test function and continuity buzzer. The meter measures AC voltage and current for the frequency range of 50Hz to 400Hz. The MT1883 is the first choice for electronic technicians and electricians, including students studying electronics.
Acessories
Temperature Probe.
9V Battery.
Test Leads.
Instruction Manual.
Technical Datasheet Instruction Manual
ADDITIONAL INFORMATION
| DC Voltage |
1000V |
|---|---|
| DC Voltage resolution |
0.1mV |
| DC Voltage accuracy |
±(0.5% +2) |
| AC Voltage |
700V |
| AC Voltage resolution |
0.1mV |
| AC voltage accuracy |
±(1.0% +3) |
| DC Current |
10A |
| DC Current resolution |
10A |
| DC Current accuracy |
±(2.5% + 10) |
| AC Current |
10A |
| AC current resolution |
10A |
| AC Current accuracy |
±(3.0% +10) |
| Resistance |
20MΩ |
| Resistance resolution |
0.1Ω |
| Resistance accuracy |
±(1.2% +2) |
| Frequency |
2000kHz |
| Frequency resolution |
1Hz |
| Frequency accuracy |
±(1.5% +5) |
| Capacitance |
200.0µF |
| Capacitance resolution |
1pF |
| Capacitance accuracy |
±(4.0% +3) |
| Temperature |
-20 to 760°C |
| Temperature resolution |
1°C |
| Temperature accuracy |
±(3% +5°C) |
| Continuity |
Yes |
| Diode Test |
Yes |
| AC Bandwidth |
50Hz to 400Hz |
| Digital Display |
2000 |
| Over-range indication |
Yes |
| Input Impedance |
˃10MΩ VDC & ˃9MΩ VAC |
| Min Max |
Yes |
| Back Light |
Yes |
| Enclosure |
Double moulded waterproof IP67 |
| Low battery indication |
Yes |
| Power source |
6LF22 |
| Weight |
375g |
| Dimensions |
182 x 81 x 50mm |
| Safety Specs |
IEC61010-1 CatIV 600V |
- IP67 Dust & Waterproof with O-Ring sealed casing Manual Range.
- Measures Frequency 1Hz to 2000KHz on Electronic and Electrical Circuits.
- Temperature between 20°C to 760°C.
- Capacitance to 200μF.
- Measures ACV to 700V and DCV to 1000V, fused AC and DC current up to 10 Amps.
- Measures Resistance up to 20MΩ.
- 2000 Count LCD.
- Full Ranges Protection.
- Overmould rubber housing.
- Integrated Test Lead Holder.
- Â Backlight for dimly lit areas.
- CAT III 1000V and CAT IV 600V.
-
-
-
-
