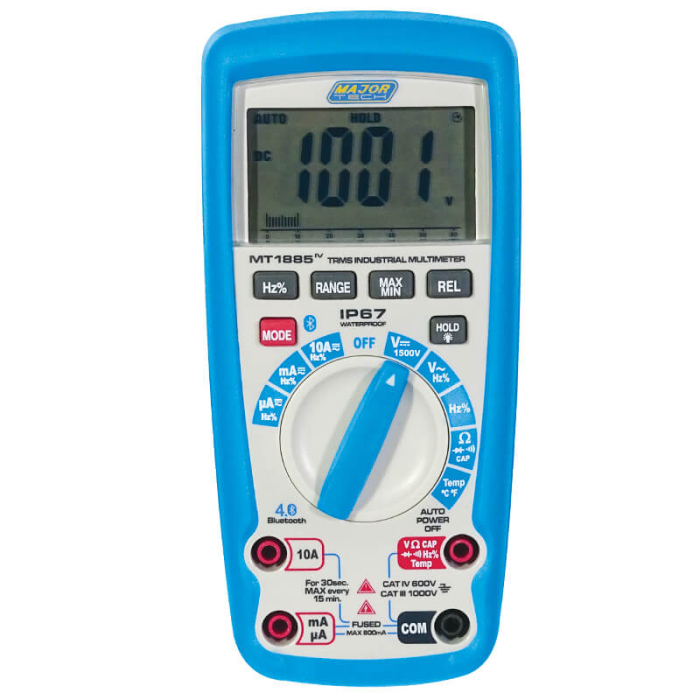

Major Tech MT1885 1500V DC IP67 True RMS Bluetooth Multimeter
The MT1885 is a CAT IV 600V True RMS multimeter specially designed for the Solar industry due to the measurement of up to 1500V DC. The meter has a large 6000 count backlit LCD with the added advantage of a 61 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organizing and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Accessories:
- Type-K Temperature Probe
- Test Leads
- Type-K Adaptor
- 9V Battery
- Instruction Manual
ADDITIONAL INFORMATION
| DC Voltage |
600mV-1500V |
|---|---|
| DC Voltage resolution |
1V |
| DC Voltage accuracy |
0.5% + 5 Digits |
| AC Voltage |
6V – 1000V |
| AC Voltage resolution |
1V |
| AC voltage accuracy |
±(0.8% + 4 Digits) |
| DC Current |
600uA – 10A |
| DC Current resolution |
10mA |
| DC Current accuracy |
±(1.0% + 3 Digits) |
| AC Current |
600uA – 10A |
| AC current resolution |
10mA |
| AC Current accuracy |
±(1.5% + 3 Digits) |
| Duty Cycle |
0.1% – 99.9% |
| Duty Cycle resolution |
0.1% |
| Duty Cycle accuracy |
±(1.2% + 2 Digits) |
| Resistance |
600Ω – 60MΩ |
| Resistance resolution |
10kΩ |
| Resistance accuracy |
±(1.5% + 2 Digits) |
| Frequency |
9.999Hz – 9.999MHz |
| Frequency resolution |
1kHz |
| Frequency accuracy |
±(1.2% + 4 Digits) |
| Capacitance |
99.9nF – 99.99mF |
| Capacitance resolution |
0.01mF |
| Capacitance accuracy |
±(4.0% + 5 Digits) |
| Temperature |
-20°C – 1000°C |
| Temperature resolution |
1°C |
| Temperature accuracy |
±(3.0% + 5°C Digits) |
| Continuity |
Audible signal if the resistance is approx. 50Ω or less |
| Diode Test |
Test current 0.9mA typical, open circuit voltage 3.2V DC typical |
| True RMS Measurements |
AC |
| Digital Display |
6000 Count |
| Non-Contact Voltage (NCV) |
Detection above 110V AC, LCD display turns red |
| Min Max |
Yes |
| Data Hold |
Yes |
| Back Light |
Yes |
| Enclosure |
Double moulded waterproof IP67 |
| Low battery indication |
Yes |
| Power source |
9V Battery |
| Weight |
342g |
| Dimensions |
187 x 81 x 50mm |
| Bargraph |
61 Segmented |
- Measures DC voltage up to 1500V
- Measures AC voltage up to 1000V
- Measures frequency of electronic and electrical circuits
- 6000 Count LCD display with 61 segment analogue bargraph
- Temperature measurement from -20⁰C to 1000⁰C
- AC & DC Micro Amps up to 10A
- Capacitance to 4000µF
- Frequency to 10MHz
- Duty Cycle
- Relative mode
- Non-contact voltage detector above 110V AC, LCD turns red
- Min, Max and Data Hold
- Auto Power Off
- IP67 Dust & Waterproof
- CAT IV 600V / CAT III 1000V
-
