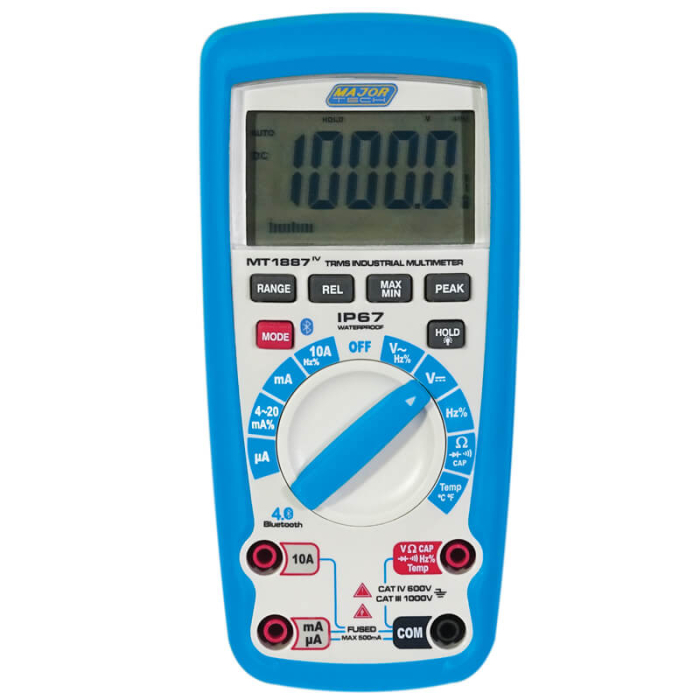

Major Tech MT1887 TRMS Auto DMM, CATIV 600V, IP67

R 4 916,25 inc. vat
In stock
SKU
MajMT1887
Reliable nationwide shipping
Delivery in 4 - 5 days

The MT1887 measures True-RMS AC voltage and current readings, which yields accurate results on sine waves as well as non-sinusoidal waveforms using a frequency range of 50Hz to 1kHz. The MT1887 has a large LCD display screen where the accuracy is stated in 40,000 high resolution counts, supported with a 41 segment analogue bargraph and white backlight, ideal for use in dimly lit areas. The MT1887 is an ideal tool for troubleshooting power distribution, industrial automations and for electronic and electrical field applications. This popular meter is also available in an intrinsically safe version.

Accessories:
Temperature Probe
9V Battery
Test Leads
Instruction Manual

Technical Datasheet   Instruction Manual



Additional information

DC Voltage

1000V

DC Voltage accuracy

±(0.06% +20)

DC Voltage resolution

0.01mV

AC Voltage

1000V

AC voltage accuracy

±(1% +2)

AC Voltage resolution

0.1mV

DC Current

10A

DC Current accuracy

±(0.1% +3)

DC Current resolution

0.01µA

AC Current

10A

AC Current accuracy

±(1.5% +3)

AC current resolution

0.01µA

Resistance

40MΩ

Resistance resolution

0.01Ω

Resistance accuracy

±(0.3% +4)

Duty Cycle accuracy

±(1.2% +2)

Duty Cycle resolution

0.01%

Temperature

-50 to 1000°C

Temperature accuracy

±( 1.0%+2.5)

Temperature resolution

0.1°C

Frequency

100MHz

Frequency accuracy

±(0.01% +1)

Frequency resolution

0.001Hz

Capacitance

40mF

Capacitance accuracy

±(3.5% +10)

Capacitance resolution

0.001nF

4-20mA% accuracy

±(50)

4-20mA% resolution

0.01%

Diode Test

Yes

Input Impedance

˃10MΩ VDC & ˃3MΩ VAC

Non-Contact Voltage (NCV)

Yes

True RMS Measurements

AC

Min Max

Yes

Over-range indication

Yes

Peak hold

less than 1mS

Digital Display

40000

Power source

6LF22

Safety Specs

IEC61010-1 CatIV 600V

Low battery indication

Yes

Continuity

Yes

Enclosure

Double-moulded waterproof IP67

AC Bandwidth

50Hz to 1000Hz

Bargraph

Yes

Back Light

Yes

Dimensions

187 x 81 x 50mm

Weight

342g

  • Measures True RMS, AC Voltage and Current reading
  • NCV detection
  • Auto Range with Manual Override
  • Measures Frequency on Electronic and Electrical Circuits
  • >1ms Peak Hold function
  • Temperature between -50 to 1000°C
  • 4~20mA % Process loop measurements
  • Capacitance to 40mF
  • Relative Mode
  • Data Hold Function
  • Min/Max Recordings
  • 0.06% Basic accuracy
  • Diode Test and Continuity Buzzer
  • Auto Power Off
  • 40,000 Count LCD with 41 segment analogue bargraph
  • Integrated Test Lead Holder
  • Back Light for dimly lit areas
  • IP67 Overmould Dust & Waterproof casing
  • CAT IV 600V and CAT III 1000V

MT1887IS – Intrinsically safe version available
