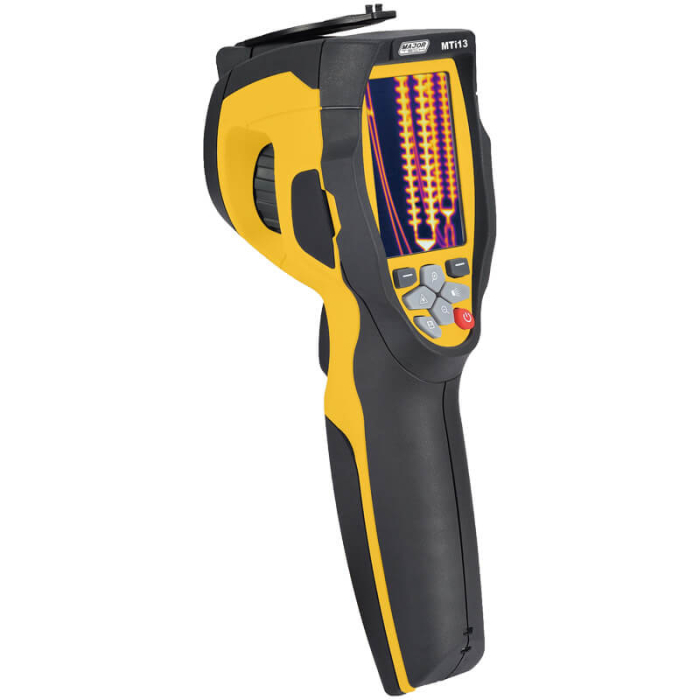

Major Tech MTi13 80 x 80 Pix, -20 °C to +350 °C, Thermal Camera
The MTi13 Thermal Imager is designed for non-contact detection and calculation of apparent surface temperature. This fully radiometric imager is ideal for troubleshooting electrical systems, electro-mechanical equipment, process equipment, HVAC/R equipmemt and others.
The MTi13 Thermal Imager with 80 x 80 resolution at 50Hz offers real-time capture and a large touch screen with a toolbar that will assist you to fine-tune and analyze images quickly. Temperature range from -20° C to 350° C, 20X continuous zoom, picture-in-picture, Hot/Cold spot marker, voice comment recording and text annotation on images.
Applications:
Plant / General Maintenance
HVAC/R
Transportation / Automotive
Cooling and Reheating
Serving areas and Cold storage
Food service equipment
Accessories:
Carrying Case
LI-ion Battery
Instruction Manual
Charger
Software CD
USB cable
8GB SD Card
ADDITIONAL INFORMATION
| Field of View |
17° x 17° |
|---|---|
| Spartial resolution (IFOV) |
3.77mrad |
| Thermal sensitivity/NETD |
˂0.1°C @ +30°C |
| Image Range |
50Hz |
| Focus mode |
Manual |
| Zoom |
1 x 32 x continuous, digital zoom |
| Focal Length |
9mm |
| IR Resolution |
80 x 80 pixels |
| Display |
2.8 LCD, 240 x 320 pixels |
| Image Modes |
IR Image, Visual image, Image Fusion |
| Colour Palletes |
Iron, rainbow, grey, grey inverted |
| Temperature range |
Low -20°C to 150°C, High 0°C to 350°C |
| Temperature accuracy |
±(2°C or ± 2%) |
| Spot |
Center spot |
| Emmisivity correction |
Variable 0.01 to 1.0 |
| Measurement corrections |
Emissivity, reflected temperature |
| Videos |
8Gbytes Micro SD card |
| Videos format |
Std MPEG-4, 1280 x 960@30fps, on memory card less than 60minutes |
| Videos storage mode |
IR/Visual images: simultaneous storage of IR and visual images |
| Images format |
Std JPEG, incl measurement data, on memory card less than 1000 pictures |
| Image storage mode |
IR/Visual images: simultaneous storage of IR and visual images |
| Built-in |
5 Megapixels |
| Built-in digital lens data |
FOV 59° |
| Interfaces |
USB-mini,audio, HDMI |
| Video Out |
HDMI |
| Power source |
3.7V 2600mAH Lithium ion, 4 hours operating time |
| Input system |
DC 5V |
| Charging system |
In camera (AC adapter) |
| Enclosure |
Overmould casing |
| Weight |
500g |
| Dimensions |
224 x 77 x 96mm |
- 80 x 80 Resolution
- Field of view 17 x 17°
- Temperature -20°C – 350°C
- Picture-in-Picture
- 5 Megapixels Digital Camera
- Laser Pointer
- Thermal Fusion
- Text and voice annotations
- USB interface
- 8GB Micro SD card
- IP65 Waterproof
-
