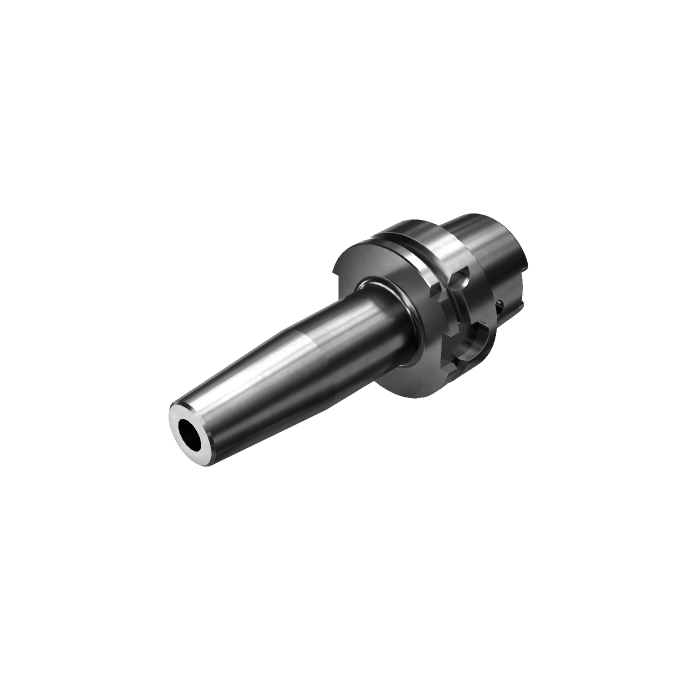

Sandvik Coromant HA10-SH08Q-S-120 HSK to shrink fit chuck
R 8 860,75
inc. vat
In stock
SKU
7081633
HSK to shrink fit chuck
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to shrink fit chuck
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DFC - Functional Diameter | 75.013mm |
| DCON - Connection Diameter | 8mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 120mm |
| BD - Body Diameter | 100mm |
| LB - Body Length | 120mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 125001/min |
| WT - Weight Of Item | 2.334kg |
| OAL - Overall Length | 170mm |
| OHX - Maximum Overhang | 120mm |
| LSC - Clamping Length | 26mm |
| ORDCODE | HA10-SH08Q-S-120 |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLSH_F8000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| DCPS - Data Chip Provision Size | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-02 12:51:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | DIN69893-1 |
| TCDCON - Connection Diameter Tolerance | h6 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | True |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
