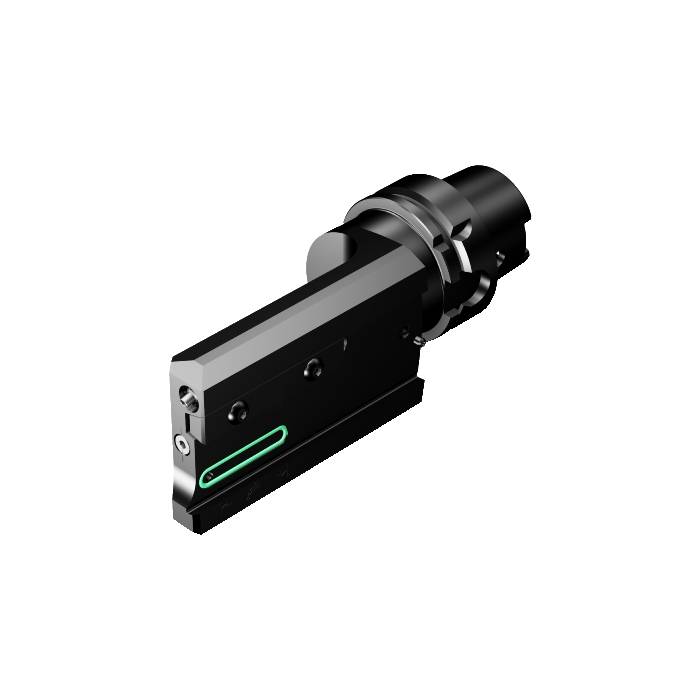

Sandvik Coromant HT06-APBL-175-25HP HSK to blade adaptor
R 13 538,95
inc. vat
In stock
SKU
7086887
HSK to blade adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to blade adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DFC - Functional Diameter | 48.01mm |
| DCON - Connection Diameter | 63mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 175mm |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 2.5kg |
| OAL - Overall Length | 206.9mm |
| OHX - Maximum Overhang | 175mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 32mm |
| HF - Functional Height | 25mm |
| LPR - Protruding Length | 175mm |
| OAH - Overall Height | 69mm |
| OAW - Overall Width | 69mm |
| RADH - Radial Body Height | 37mm |
| RADW - Radial Body Width | 37mm |
| DIX - Maximum Tool Changer Interference Diameter | 100mm |
| ORDCODE | HT06-APBL-175-25HP |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK07_C0630_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_PMC012_C025L_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 6 |
| DCPS - Data Chip Provision Size | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-04 11:24:00.000 |
| STDLET - Standard Letter | T |
| STDNO - Standard Number | DIN69893-7 |
| Hand | L |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
