Sandvik Coromant N151.2-300-30-4P 1125 T-Max™ Q-Cut insert for profiling
Next
Sandvik Coromant N123J2-0600-RO 1005 CoroCut™ 1-2 insert for profiling
Previous
![Sandvik Coromant N151.2-300-30-4P 1125 T-Max™ Q-Cut insert for profiling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/471253290/sandvik-coromant-n151-2-300-30-4p-1125-t-maxtm-q-cut-insert-for-profiling.jpg)
![Sandvik Coromant N123J2-0600-RO 1005 CoroCut™ 1-2 insert for profiling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/47123fc96/sandvik-coromant-n123j2-0600-ro-1005-corocuttm-1-2-insert-for-profiling.jpg)
R 717,60
inc. vat
In stock
SKU
5736817

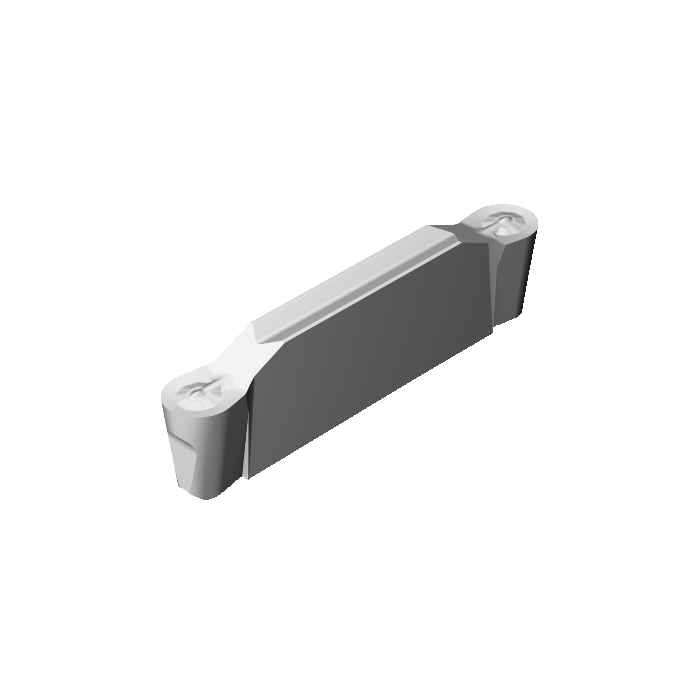

CoroCut® 1-2 insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for profiling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 8.1g |
KAPR - Tool Cutting Edge Angle | 102.5deg |
RMPX - Maximum Ramping Angle | 90deg |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
RE - Corner Radius | 3mm |
Insert Thickness | 4.35mm |
CW - Cutting Width | 6mm |
CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
CDX - Cutting Depth Maximum | 22.2mm |
APMX - Depth Of Cut Maximum | 2.8mm |
RETOLL - Corner Radius Lower Tolerance | -0.01mm |
RETOLU - Corner Radius Upper Tolerance | 0.01mm |
LIG - Insert Gauge Length | 25.05mm |
ORDCODE | N123J2-0600-RO 1105 |
CHANGEDATE | 2022-09-07 11:57:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 9 |
SSC - Insert Seat Size Code | J |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCJ2_1 |
Grade | 1105 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | RO |
CEDC - Cutting Edge Count | 2 |
