Sandvik Coromant QS-RF123G067-10B CoroCut™ 1-2 QS shank tool for parting & grooving
Next
Sandvik Coromant QS-RF123F039-06B CoroCut™ 1-2 QS shank tool for parting & grooving
Previous
![Sandvik Coromant QS-RF123G067-10B CoroCut™ 1-2 QS shank tool for parting & grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/543898df9/sandvik-coromant-qs-rf123g067-10b-corocuttm-1-2-qs-shank-tool-for-parting-grooving.jpg)
![Sandvik Coromant QS-RF123F039-06B CoroCut™ 1-2 QS shank tool for parting & grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/543870767/sandvik-coromant-qs-rf123f039-06b-corocuttm-1-2-qs-shank-tool-for-parting-grooving.jpg)
R 2 888,80
inc. vat
In stock
SKU
5926278
CoroCut® 1-2 QS shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days

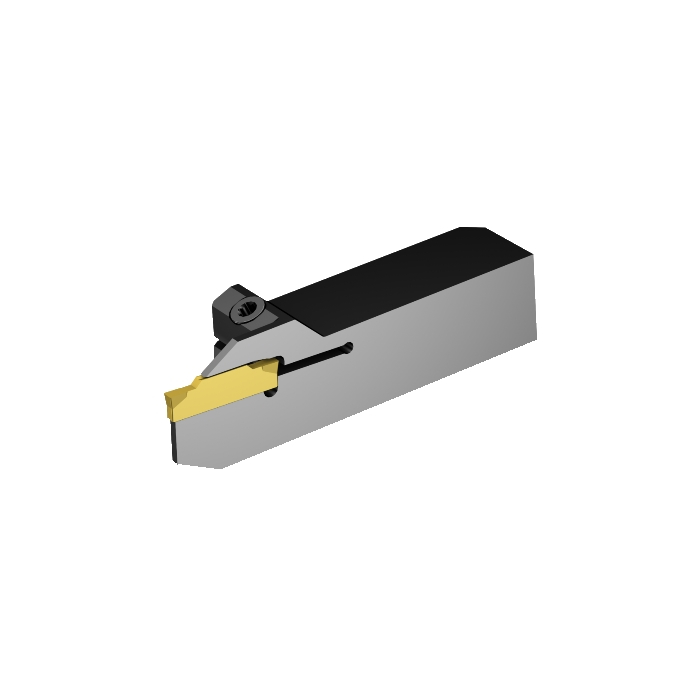

CoroCut® 1-2 QS shank tool for parting and grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 70mm |
TQ - Torque | 2.5Nm |
WT - Weight Of Item | 0.089kg |
OAL - Overall Length | 70mm |
OHX - Maximum Overhang | 26.586mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 12.7mm |
HF - Functional Height | 12.7mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.3321mm |
H - Shank Height | 12.7mm |
CW - Cutting Width | 2.5mm |
B - Shank Width | 12.7mm |
CDX - Cutting Depth Maximum | 14.986mm |
CUTDIA - Work Piece Parting Diameter Maximum | 29.972mm |
ORDCODE | QS-RF123F059-08B |
ADINTMS - Adaptive Interface Machine Direction | M_PMC09_B0808_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:02:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCF2_2 |
Hand | R |
MIID - Master Insert Identification | N123F2-0250-0002-CM |
SSC - Insert Seat Size Code | F |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
