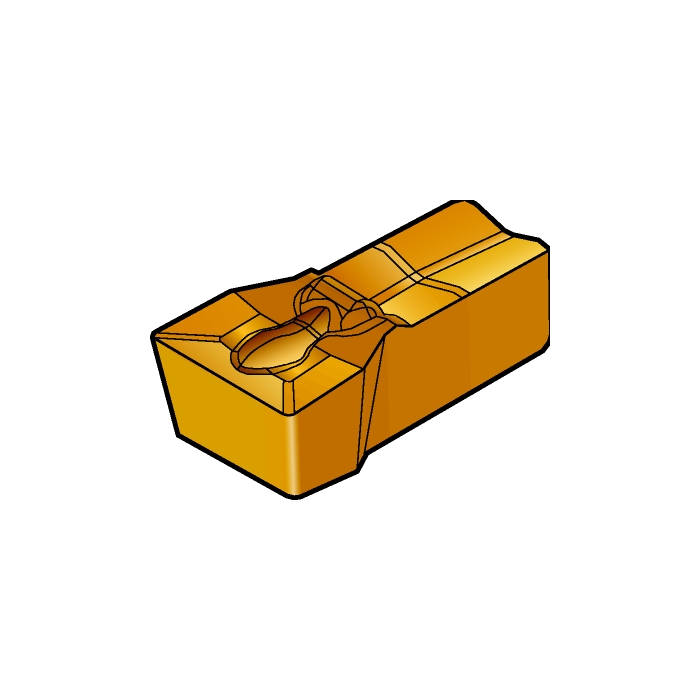

Sandvik Coromant RAG151.32-16M12-20 T-Max™ Q-Cut boring bar for grooving
R 3 245,30
inc. vat
In stock
SKU
5738335
T-Max® Q-Cut boring bar for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut boring bar for grooving
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 16mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 150mm |
| TQ - Torque | 2.5Nm |
| WT - Weight Of Item | 0.204kg |
| OAL - Overall Length | 150mm |
| OHX - Maximum Overhang | 64mm |
| LSC - Clamping Length | 86mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| DMIN - Minimum Bore Diameter | 12mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| OHN - Minimum Overhang | 27mm |
| WF - Functional Width | 10mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.783mm |
| LU - Usable Length | 20mm |
| CW - Cutting Width | 2mm |
| CDX - Cutting Depth Maximum | 2mm |
| WB - Body Width | 9.5mm |
| ORDCODE | RAG151.32-16M12-20 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G1600_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-01 01:07:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CB3G20_1 |
| Hand | R |
| MIID - Master Insert Identification | N151.3-200-20- 4G |
| SSC - Insert Seat Size Code | 20 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | True |
