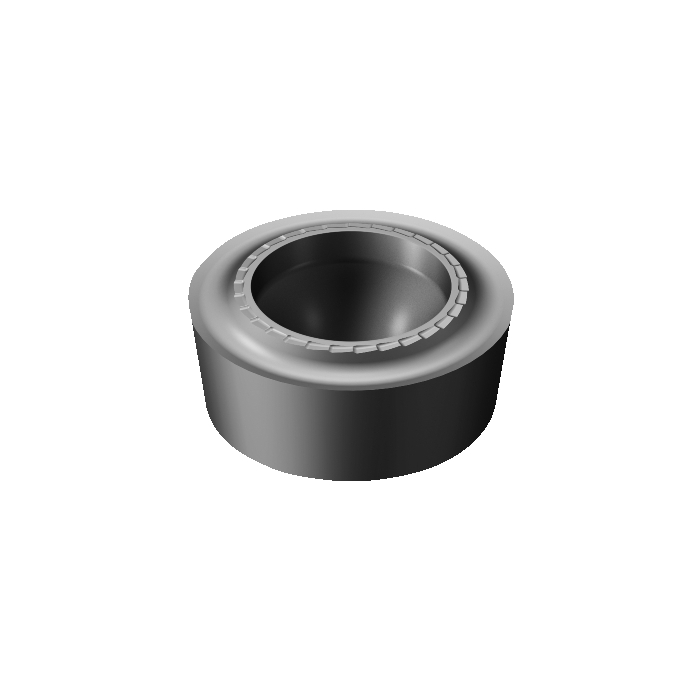

Sandvik Coromant RCMT 09 T3 00-SM H13A CoroTurn™ 107 insert for turning
R 123,05
inc. vat
In stock
SKU
5740702
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 3.6g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 4.7625mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4mm |
| BN - Face Land Width | 0.1mm |
| GB - Face Land Angle | 15deg |
| ORDCODE | RCMT 09 T3 00-SM H13A |
| CHANGEDATE | 2021-12-17 18:35:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_RC09T3_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | SM |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
