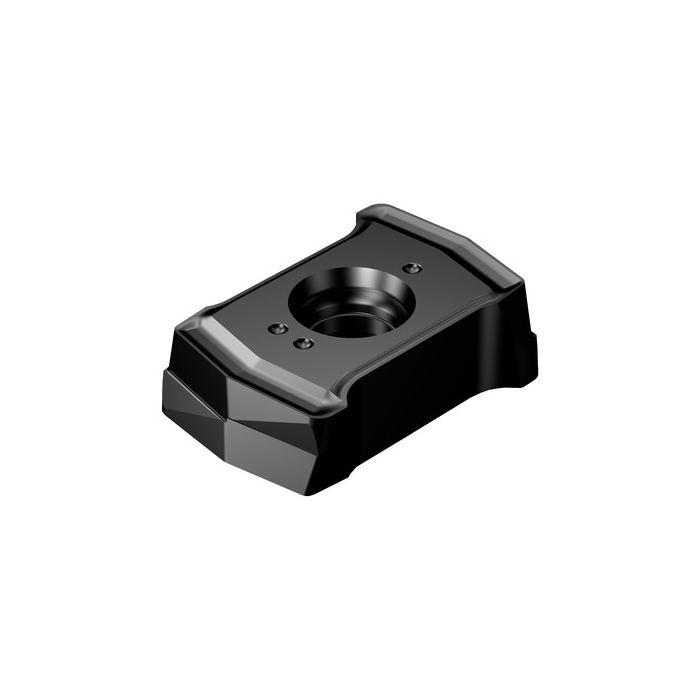

Sandvik Coromant DS20-0708-P-L5W 4324 CoroDrill® DS20 insert for drilling

R 411,70 inc. vat
In stock
SKU
7549985
CoroDrill® DS20 insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® DS20 insert for drilling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 30g
AN - Clearance Angle Major 1deg
RE - Corner Radius 0.8mm
Insert Thickness 7mm
BS - Wiper Edge Length 0.45mm
GAN - Insert Rake Angle 2.5deg
W1 - Insert Width 18.03mm
INSL - Insert Length 21.9mm
BSR - Wiper Edge Radius 9mm
ORDCODE DS20-0708-P-L5W 4324
CHANGEDATE 2022-09-21 12:32:00.000
Hand R
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 07P
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_DQ0708P_1
Grade 4324
COATING CVD TiCN+Al2O3
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation L5W
INSUC - Insert Usage Code P
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
