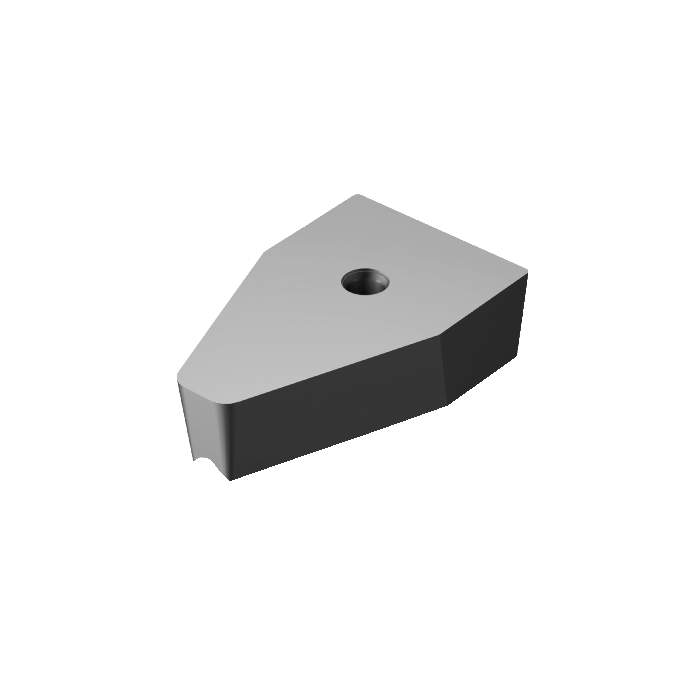

Sandvik Coromant 176M80-N210616E-PM 1130 CoroMill™ 176 insert for gear milling
R 937,25
inc. vat
In stock
SKU
7101130
CoroMill® 176 insert for gear milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 176 insert for gear milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.032kg |
| AN - Clearance Angle Major | 7deg |
| RE - Corner Radius | 1.6mm |
| Insert Thickness | 5.5mm |
| D1 - Fixing Hole Diameter | 2.5mm |
| LE - Cutting Edge Effective Length | 21mm |
| BS - Wiper Edge Length | 0mm |
| GAN - Insert Rake Angle | 0deg |
| W1 - Insert Width | 19.55mm |
| ORDCODE | 176M80-N210616E-PM 1130 |
| CHANGEDATE | 2022-04-06 04:55:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SSC - Insert Seat Size Code | 21 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NHM80_1 |
| Grade | 1130 |
| COATING | PVD AlTiCrN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PM |
| BSG - Basic Standard Group | DIN 3972 LL |
| PRSPC - Profile Specification | mn8 |
| CEDC - Cutting Edge Count | 1 |
| WEP - Wiper Edge Property | False |
