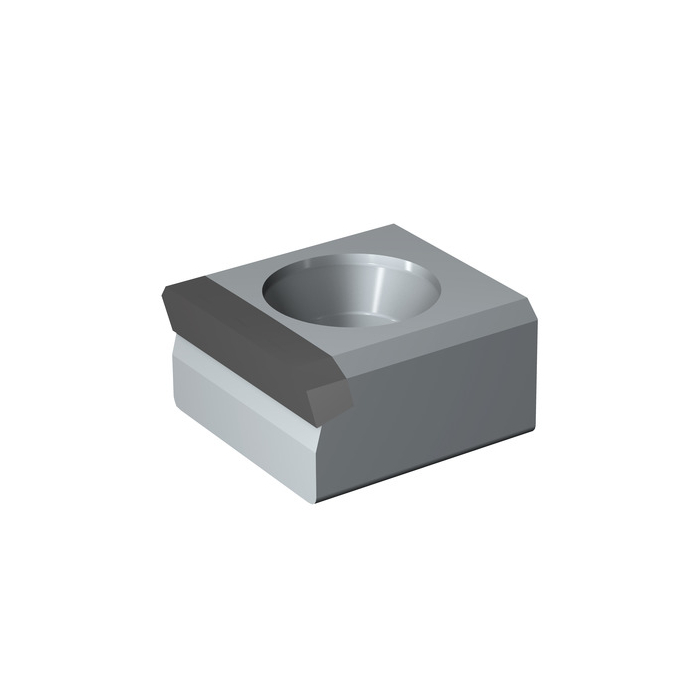

Sandvik Coromant 5B90N-0905H-PS2-NW CD07 Insert for milling
R 2 558,75
inc. vat
In stock
SKU
7211516
Insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
Insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.004kg |
| AN - Clearance Angle Major | 0deg |
| Insert Thickness | 9.5mm |
| L - Cutting Edge Length | 9mm |
| KRINS - Major Cutting Edge Angle | 1.65deg |
| BN - Face Land Width | 0.6mm |
| GB - Face Land Angle | 30deg |
| BS - Wiper Edge Length | 9mm |
| GAN - Insert Rake Angle | 15deg |
| KCH - Corner Chamfer | 90deg |
| W1 - Insert Width | 5mm |
| BSR - Wiper Edge Radius | 500mm |
| ORDCODE | 5B90N-0905H-PS2-NW CD07 |
| CHANGEDATE | 2022-04-06 04:58:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NT0905_1 |
| Grade | CD07 |
| SUBSTRATE | DP |
| CBMD - Chip Breaker Manufacturer's Designation | NW |
| CEDC - Cutting Edge Count | 1 |
| WEP - Wiper Edge Property | True |
