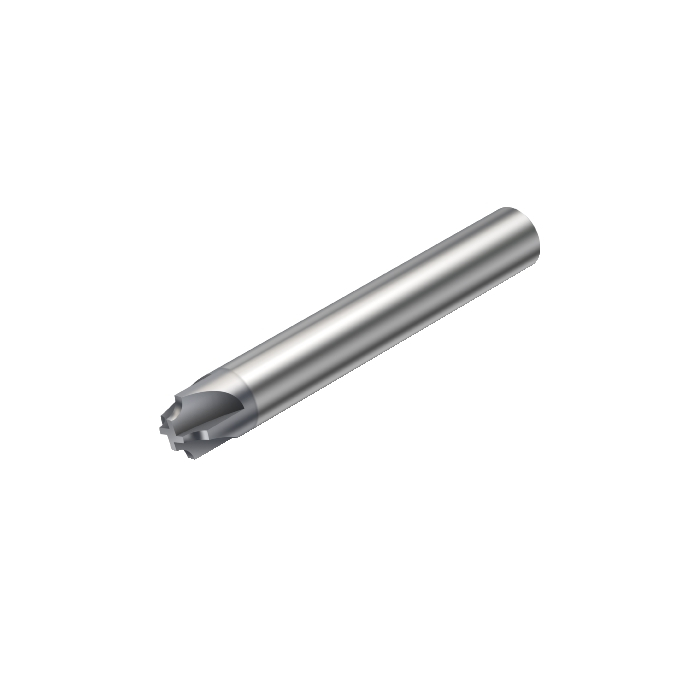

Sandvik Coromant 1U000-0160-238-XA 1620 CoroMill™ Plura solid carbide end mill for Chamfer milling

Name: Sandvik Coromant 1U000-0160-238-XA 1620 CoroMill™ Plura solid carbide end mill for Chamfer milling
SKU: 7045798
Price: 1913.60 ZAR
Availability: OutOfStock

Be the first to review this product

R 1 913,60 inc. vat

Out of stock

SKU

7045798

CoroMill® Plura solid carbide end mill for Chamfer milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Chamfer milling

More Information

More Information
DCON - Connection Diameter	9.525mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63.5mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.07kg
OAL - Overall Length	63.5mm
OHX - Maximum Overhang	23.8mm
LSC - Clamping Length	39.7mm
LU - Usable Length	2.381mm
APMX - Depth Of Cut Maximum	2.381mm
DC - Cutting Diameter	1.6mm
GAMF - Radial Rake Angle	1.5deg
GAMP - Axial Rake Angle	0deg
DCX - Maximum Cutting Diameter	7.94mm
PRFRAD - Profile Radius	2.381mm
ORDCODE	1U000-0160-238-XA 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R3750_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-09-13 12:07:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	INTERNAL
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
