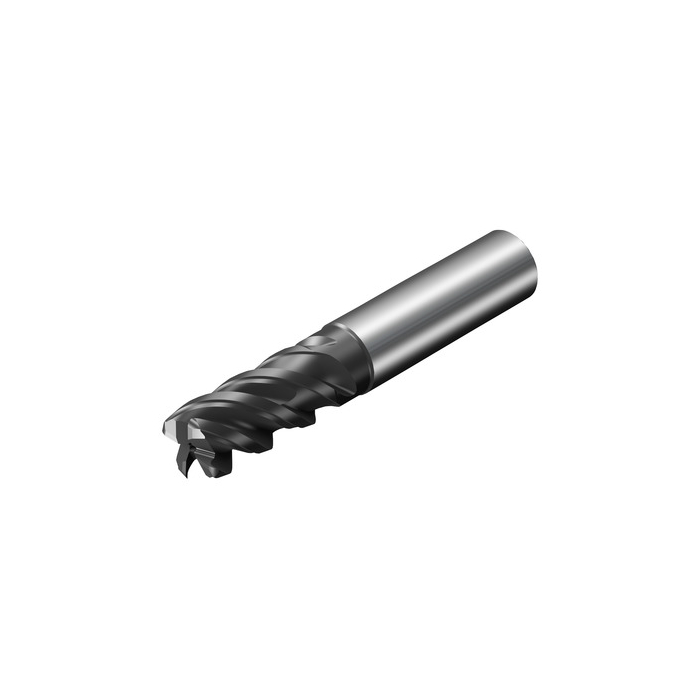

Sandvik Coromant 2F440-0635-076ASD 1725 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
R 1 967,65
inc. vat
In stock
SKU
7858307
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DCON - Connection Diameter | 6.35mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 63.5mm |
| RPMX - Rotational Speed Maximum | 400001/min |
| WT - Weight Of Item | 0.025kg |
| OAL - Overall Length | 63.5mm |
| OHX - Maximum Overhang | 27.5mm |
| LSC - Clamping Length | 36mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 5deg |
| RE - Corner Radius | 0.762mm |
| H - Shank Height | 5.1mm |
| LU - Usable Length | 22.225mm |
| APMX - Depth Of Cut Maximum | 15.875mm |
| DC - Cutting Diameter | 6.35mm |
| DCF - Cutting Diameter Face Contact | 4.826mm |
| DN - Neck Diameter | 6.03mm |
| FHA - Flute Helix Angle | 48deg |
| GAMF - Radial Rake Angle | 10.5deg |
| GAMP - Axial Rake Angle | 13.5deg |
| ULDR - Usable Length Diameter Ratio | 3.5 |
| ORDCODE | 2F440-0635-076ASD 1725 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLW_R2500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-08-26 11:23:00.000 |
| STDLET - Standard Letter | WE |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1725 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | VFD |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 4 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CCC - Center Cutting Capability | False |
| CPDF - Cutting Pitch Differential | False |
