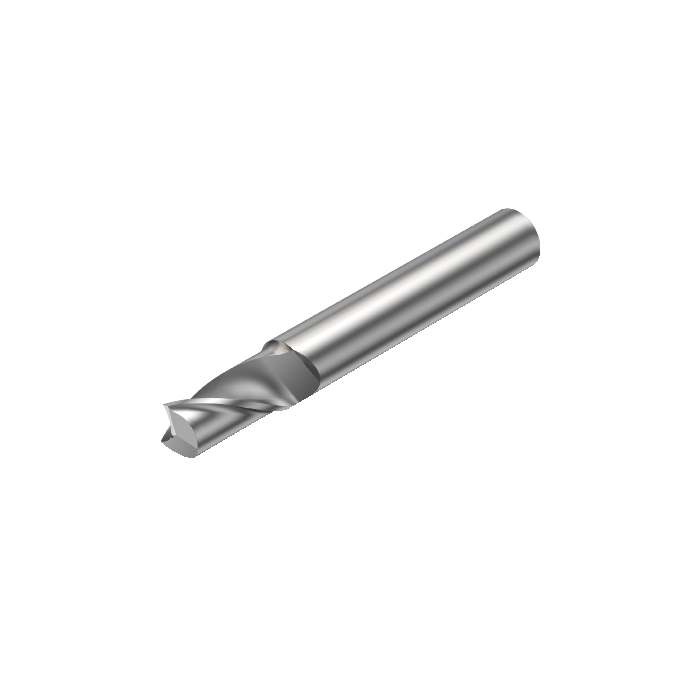

Sandvik Coromant 2P230-0500-NA H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

Name: Sandvik Coromant 2P230-0500-NA H10F CoroMill™ Plura solid carbide end mill for Large chip Removal
SKU: 6260068
Price: 960.25 ZAR
Availability: InStock

Be the first to review this product

R 960,25 inc. vat

In stock

SKU

6260068

CoroMill® Plura solid carbide end mill for Large chip Removal

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Large chip Removal

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.03kg
OAL - Overall Length	57mm
OHX - Maximum Overhang	21mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	0mm
LU - Usable Length	10mm
APMX - Depth Of Cut Maximum	10mm
DC - Cutting Diameter	5mm
DCF - Cutting Diameter Face Contact	5mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	13.5deg
GAMP - Axial Rake Angle	2deg
ULDR - Usable Length Diameter Ratio	2
ORDCODE	2P230-0500-NA H10F
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:37:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	H10F
SUBSTRATE	HF
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	1
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
