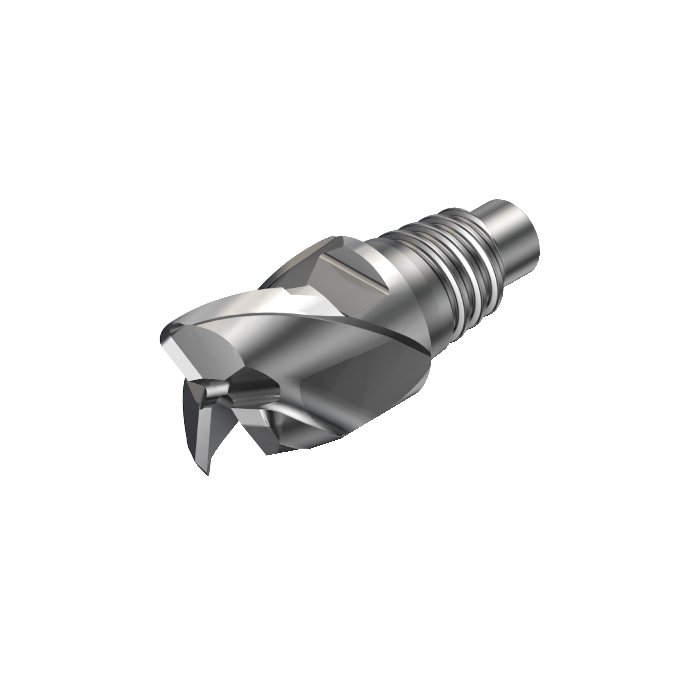

Sandvik Coromant 316-10SM345-10010A H10F CoroMill™ 316 solid carbide head for Large Chip removal

Name: Sandvik Coromant 316-10SM345-10010A H10F CoroMill™ 316 solid carbide head for Large Chip removal
SKU: 5782692
Price: 867.10 ZAR
Availability: InStock

Be the first to review this product

R 867,10 inc. vat

In stock

SKU

5782692

CoroMill® 316 solid carbide head for Large Chip removal

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for Large Chip removal

More Information

More Information
DCON - Connection Diameter	9.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	12.4mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.025kg
OAL - Overall Length	23.6mm
OHX - Maximum Overhang	12.4mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	1mm
APMX - Depth Of Cut Maximum	5.5mm
DC - Cutting Diameter	10mm
DCF - Cutting Diameter Face Contact	8mm
DN - Neck Diameter	9.7mm
FHA - Flute Helix Angle	45deg
GAMF - Radial Rake Angle	13.5deg
GAMP - Axial Rake Angle	13.5deg
ORDCODE	316-10SM345-10010A H10F
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_A0100_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:22:00.000
Hand	R
Grade	H10F
SUBSTRATE	HF
CBMD - Chip Breaker Manufacturer's Designation	AL
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
