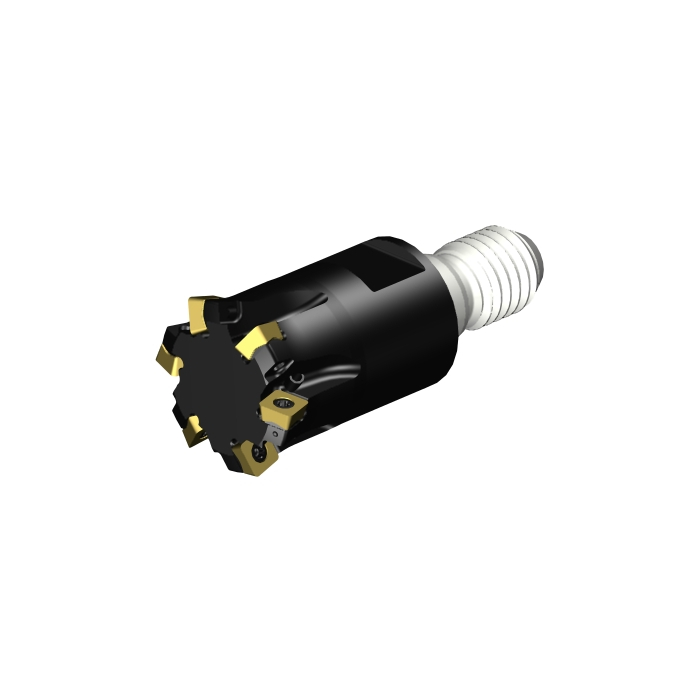

Sandvik Coromant 415-25T12-05H CoroMill™ 415 face milling cutter

Name: Sandvik Coromant 415-25T12-05H CoroMill™ 415 face milling cutter
SKU: 7082526
Price: 7046.05 ZAR
Availability: InStock

R 7 046,05 inc. vat

In stock

SKU

7082526

CoroMill® 415 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 415 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	20.8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	35mm
BD - Body Diameter	21mm
LB - Body Length	15mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	0.6Nm
RPMX - Rotational Speed Maximum	170001/min
WT - Weight Of Item	0.095kg
OAL - Overall Length	57mm
OHX - Maximum Overhang	35mm
KAPR - Tool Cutting Edge Angle	15deg
RMPX - Maximum Ramping Angle	0.64deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-8deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	5mm
Insert Thickness	2.21mm
APMX - Depth Of Cut Maximum	0.85mm
DC - Cutting Diameter	16.6mm
DCF - Cutting Diameter Face Contact	16.6mm
GAMF - Radial Rake Angle	7.73075978deg
GAMP - Axial Rake Angle	-2.08319514deg
DCX - Maximum Cutting Diameter	25mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	415-25T12-05H
ADINTMS - Adaptive Interface Machine Direction	M_SAC03_A0120_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:15:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NR0502_1
Hand	R
MIID - Master Insert Identification	415N-050206M
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	05
TDZ - Thread Diameter Size	M 12
CICT - Cutting Item Count	6
ZEFP - Peripheral Effective Cutting Edge Count	6
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
