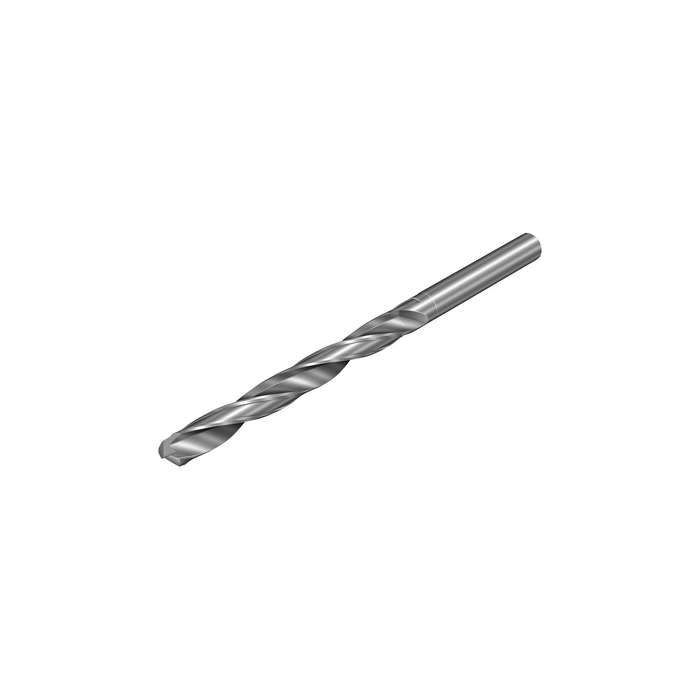

Sandvik Coromant 452.1-0326-044A0-C H10F CoroDrill® 452 solid carbide drill Previous Sandvik Coromant 452.1-0326-044A0-C H10F CoroDrill® 452 solid carbide drill

Sandvik Coromant 452.1-0326-044A0-CM H10F CoroDrill® 452 solid carbide drill

R 882,05 inc. vat
Out of stock
SKU
6010870
CoroDrill® 452 solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 452 solid carbide drill
More Information
DCON - Connection Diameter 3.26mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100.9mm
BD - Body Diameter 3.264mm
LB - Body Length 50.8mm
BHTA - Body Half Taper Angle 0deg
RPMX - Rotational Speed Maximum 500001/min
WT - Weight Of Item 0.015kg
OAL - Overall Length 101.6mm
OHX - Maximum Overhang 50.1mm
LSC - Clamping Length 50.8mm
GAMO - Orthogonal Rake Angle 13.46deg
LU - Usable Length 44.45mm
DC - Cutting Diameter 3.264mm
FHA - Flute Helix Angle 20deg
ULDR - Usable Length Diameter Ratio 13.618259803922
PL - Point Length 0.676mm
LCF - Chip Flute Length 50.8mm
SIG - Point Angle 135deg
ORDCODE 452.1-0326-044A0-CM H10F
ADINTMS - Adaptive Interface Machine Direction M_CYLR_F3260_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-09-12 15:37:00.000
Hand R
TCDCON - Connection Diameter Tolerance h8
Grade H10F
SUBSTRATE HF
BSG - Basic Standard Group COROMANT
TCHA - Achievable Hole Tolerance K8
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
