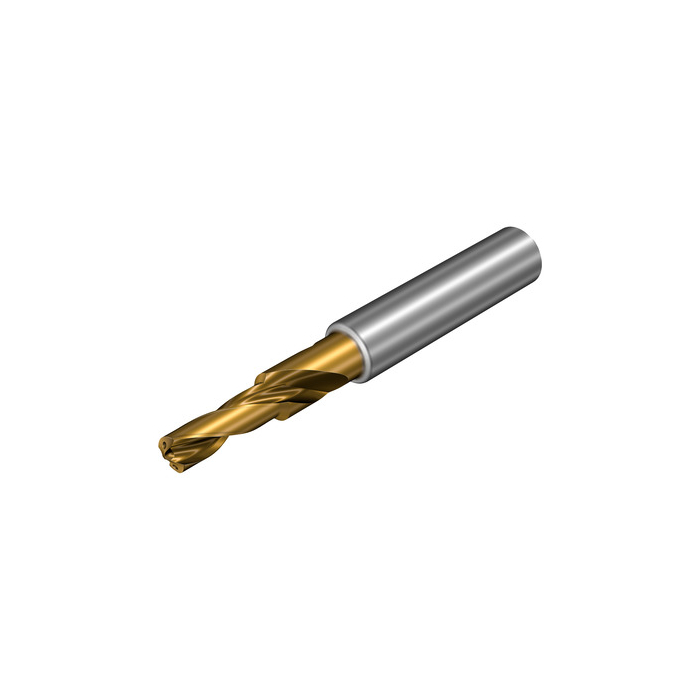

Sandvik Coromant 860.2-0690-023A1-GM X1BM CoroDrill® 860 solid carbide step and chamfer drill
Next
Sandvik Coromant 860.2-0675-022A1-GM X1BM CoroDrill® 860 solid carbide step and chamfer drill
Previous
![Sandvik Coromant 860.2-0690-023A1-GM X1BM CoroDrill® 860 solid carbide step and chamfer drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/78255ebf1/sandvik-coromant-860-2-0690-023a1-gm-x1bm-corodrillr-860-solid-carbide-step-and-chamfer-drill.jpg)
![Sandvik Coromant 860.2-0675-022A1-GM X1BM CoroDrill® 860 solid carbide step and chamfer drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/782530f6b/sandvik-coromant-860-2-0675-022a1-gm-x1bm-corodrillr-860-solid-carbide-step-and-chamfer-drill.jpg)
R 3 048,65
inc. vat
Out of stock
SKU
7783268
CoroDrill® 860 solid carbide step and chamfer drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 860 solid carbide step and chamfer drill
DCON - Connection Diameter | 10mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 87.8mm |
RPMX - Rotational Speed Maximum | 79581/min |
WT - Weight Of Item | 0.078kg |
OAL - Overall Length | 89mm |
OHX - Maximum Overhang | 47.8mm |
GAMO - Orthogonal Rake Angle | 20.45deg |
LU - Usable Length | 23mm |
DC - Cutting Diameter | 9.2mm |
FHA - Flute Helix Angle | 30deg |
PL - Point Length | 1.2mm |
LCF - Chip Flute Length | 37mm |
SIG - Point Angle | 140deg |
SDL - Step Diameter Length | 20.6mm |
STA - Step Included Angle | 90deg |
ORDCODE | 860.2-0685-023A1-GM X1BM |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G1000_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 4 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-11-23 10:19:00.000 |
Hand | R |
Grade | X1BM |
COATING | PVD TiAlSiN+TiSiN |
SUBSTRATE | HC |
TCHA - Achievable Hole Tolerance | H9 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
