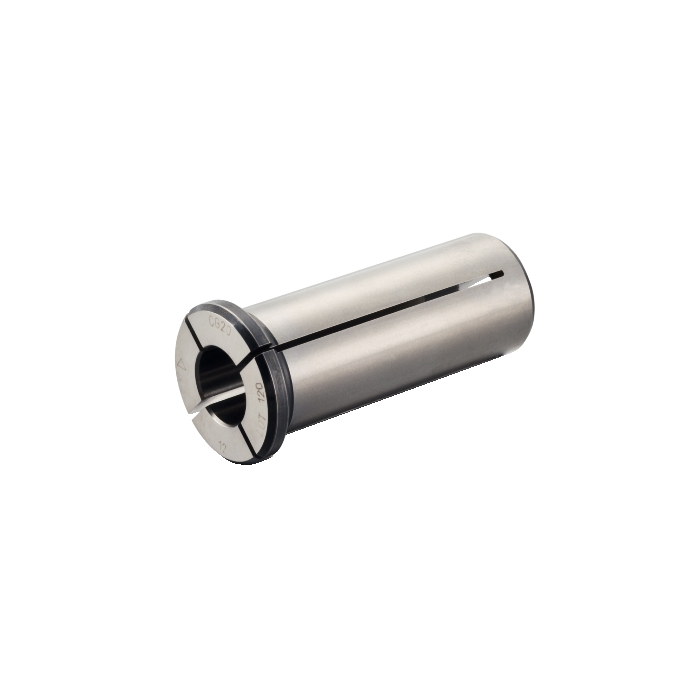

Sandvik Coromant A393.CG-25 10 56 Cylindrical sleeve
R 2 691,00
inc. vat
In stock
SKU
6153101
Cylindrical sleeve
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical sleeve
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 15.875mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 4mm |
| BD - Body Diameter | 30mm |
| LB - Body Length | 4mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 0.149kg |
| OAL - Overall Length | 60mm |
| OHX - Maximum Overhang | 4mm |
| LSC - Clamping Length | 56mm |
| ORDCODE | A393.CG-25 10 56 |
| ADINTMS - Adaptive Interface Machine Direction | M_CLTH1_A0250_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLG_R6250_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-21 01:09:00.000 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| SEAL - Sealing Property | False |
