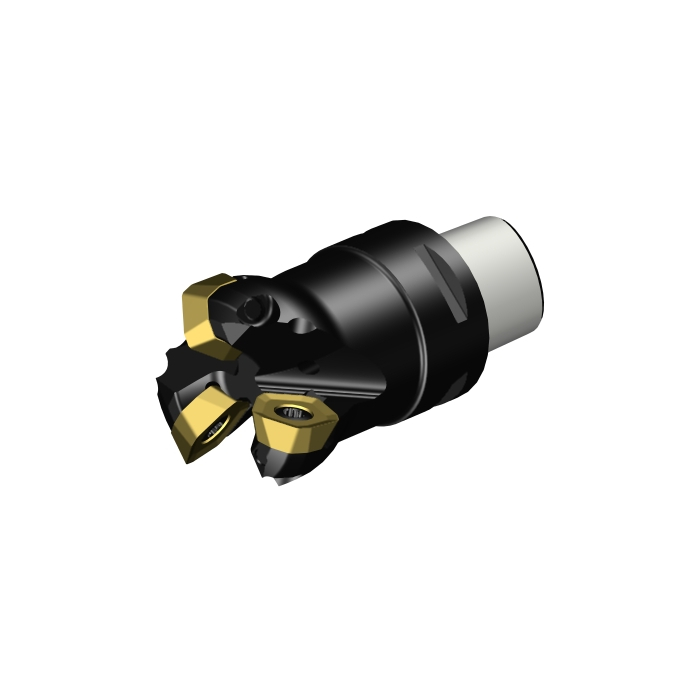

Sandvik Coromant A419-038C3-14M CoroMill™ 419 face milling cutter
R 8 054,60
inc. vat
In stock
SKU
6289915
CoroMill® 419 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 419 face milling cutter
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 50mm |
| TQ - Torque | 5Nm |
| RPMX - Rotational Speed Maximum | 214001/min |
| WT - Weight Of Item | 0.252kg |
| OAL - Overall Length | 69mm |
| OHX - Maximum Overhang | 50mm |
| KAPR - Tool Cutting Edge Angle | 19deg |
| RMPX - Maximum Ramping Angle | 9deg |
| GAMO - Orthogonal Rake Angle | 8deg |
| LAMS - Inclination Angle | -4deg |
| AN - Clearance Angle Major | 15deg |
| IC - Inscribed Circle Diameter | 13.5mm |
| Insert Thickness | 5.47mm |
| APMX - Depth Of Cut Maximum | 2mm |
| DC - Cutting Diameter | 23.5mm |
| DCF - Cutting Diameter Face Contact | 23.5mm |
| DN - Neck Diameter | 30mm |
| GAMF - Radial Rake Angle | 6.38329273deg |
| GAMP - Axial Rake Angle | 6.28397983deg |
| DCX - Maximum Cutting Diameter | 38.1mm |
| AZ - Maximum Plunge Depth | 2mm |
| ORDCODE | A419-038C3-14M |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0320_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:07:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NJ1405_1 |
| Hand | R |
| MIID - Master Insert Identification | 419R-1405 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | P |
| SSC - Insert Seat Size Code | 14 |
| CICT - Cutting Item Count | 3 |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | True |
