Sandvik Coromant C4-DM20-N-028 Coromant Capto™ to MDI adaptor
Next
Sandvik Coromant SL-2C A16 200-25 Cylindrical shank to CoroTurn™ SL adaptor
Previous
![Sandvik Coromant C4-DM20-N-028 Coromant Capto™ to MDI adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/700086c5f/sandvik-coromant-c4-dm20-n-028-coromant-captotm-to-mdi-adaptor.jpg)
![Sandvik Coromant SL-2C A16 200-25 Cylindrical shank to CoroTurn™ SL adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7000617e5/sandvik-coromant-sl-2c-a16-200-25-cylindrical-shank-to-coroturntm-sl-adaptor.jpg)
R 11 642,60
inc. vat
In stock
SKU
7628260

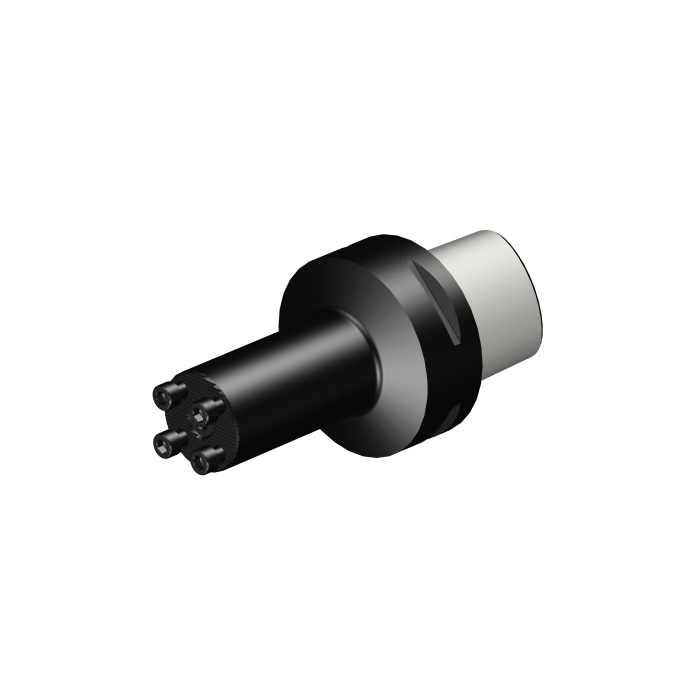

Coromant Capto® to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroTurn® SL adaptor
CP - Coolant Pressure | 15000000Pa |
---|---|
DFC - Functional Diameter | 55mm |
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 110mm |
BD - Body Diameter | 40mm |
LB - Body Length | 78mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 17Nm |
WT - Weight Of Item | 2.585kg |
OAL - Overall Length | 110mm |
OHX - Maximum Overhang | 110mm |
BAWS - Workpiece Side Body Angle | 0deg |
OHN - Minimum Overhang | 110mm |
WF - Functional Width | 0mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 110mm |
ORDCODE | C8-570-2C 40 110 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0800_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSS_C0400_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
DCPS - Data Chip Provision Size | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-04 11:32:00.000 |
STDNO - Standard Number | ISO26623-1 |
Hand | N |
DPC - Damping Property | False |
DCP - Data Chip Provision | True |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
