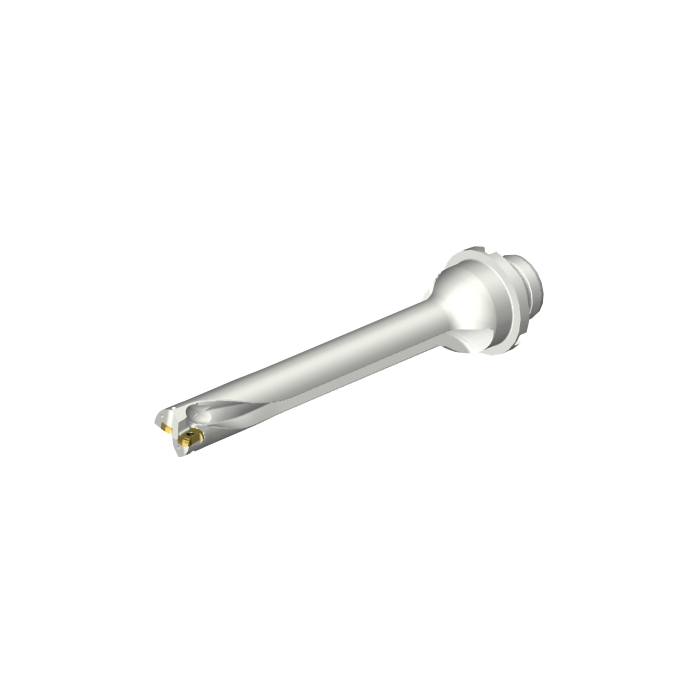

Sandvik Coromant DS20-D1800DM25-07 CoroDrill® DS20 indexable insert drill

Name: Sandvik Coromant DS20-D1800DM25-07 CoroDrill® DS20 indexable insert drill
SKU: 7755867
Price: 11048.05 ZAR
Availability: OutOfStock

Be the first to review this product

R 11 048,05 inc. vat

Out of stock

SKU

7755867

CoroDrill® DS20 indexable insert drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® DS20 indexable insert drill

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	158.5369mm
BD - Body Diameter	17.55mm
LB - Body Length	129mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	0.6Nm
RPMX - Rotational Speed Maximum	60001/min
WT - Weight Of Item	0.322kg
OAL - Overall Length	174mm
OHX - Maximum Overhang	158.5369mm
KAPR - Tool Cutting Edge Angle	81deg
GAMO - Orthogonal Rake Angle	5.3deg
LAMS - Inclination Angle	0deg
IC - Inscribed Circle Diameter	6.02mm
Insert Thickness	2.3mm
LU - Usable Length	126.4631mm
ADJLN - Minimum Adjustment Limit	0mm
ADJLX - Maximum Adjustment Limit	0.25mm
W1 - Insert Width	5mm
INSL - Insert Length	8.5mm
DC - Cutting Diameter	18mm
FHA - Flute Helix Angle	25deg
ULDR - Usable Length Diameter Ratio	7.025727777778
TCHAL - Achievable Hole Tolerance Lower	-0.1mm
TCHAU - Achievable Hole Tolerance Upper	0.5mm
PL - Point Length	0.4631mm
LCF - Chip Flute Length	145.0564mm
SIG - Point Angle	162deg
ORDCODE	DS20-D1800DM25-07
ADINTMS - Adaptive Interface Machine Direction	M_FLC11_A0250_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-04-06 01:27:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DQ0104P_1
Hand	R
MIID - Master Insert Identification	DS20-0104-P
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	01C
CICT - Cutting Item Count	1
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
