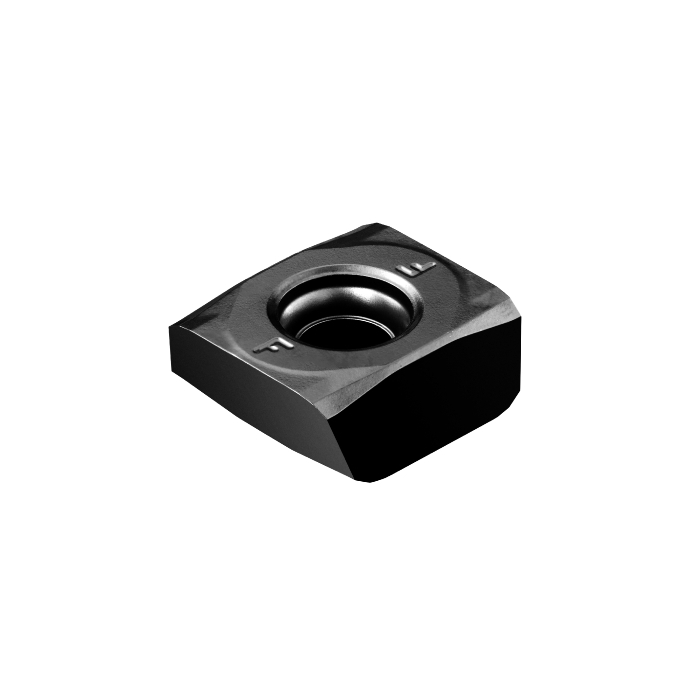

Sandvik Coromant N331.1A-04 35 05H-NLH10 CoroMill™ 331 insert for side & facemilling
Next
Sandvik Coromant RA216-38 07 M-M 1025 CoroMill™ 216 ball nose insert
Previous
![Sandvik Coromant N331.1A-04 35 05H-NLH10 CoroMill™ 331 insert for side & facemilling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/623823008/sandvik-coromant-n331-1a-04-35-05h-nlh10-coromilltm-331-insert-for-side-facemilling.jpg)
![Sandvik Coromant RA216-38 07 M-M 1025 CoroMill™ 216 ball nose insert](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6237469f8/sandvik-coromant-ra216-38-07-m-m-1025-coromilltm-216-ball-nose-insert.jpg)
R 386,40
inc. vat
In stock
SKU
5738429
Auto AF insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
Auto AF insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 7.3g |
RE - Corner Radius | 1.8mm |
Insert Thickness | 12.7mm |
D1 - Fixing Hole Diameter | 4.4mm |
LE - Cutting Edge Effective Length | 1mm |
KRINS - Major Cutting Edge Angle | 75deg |
BS - Wiper Edge Length | 2.5mm |
APMX - Depth Of Cut Maximum | 1mm |
W1 - Insert Width | 4.7625mm |
BSR - Wiper Edge Radius | 150mm |
ORDCODE | N260.8-1204-L 3020 |
CHANGEDATE | 2022-09-23 15:32:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 12 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_ND1204_1 |
Grade | 3020 |
COATING | CVD TiCN+Al2O3 |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | L |
CEDC - Cutting Edge Count | 8 |
WEP - Wiper Edge Property | True |
