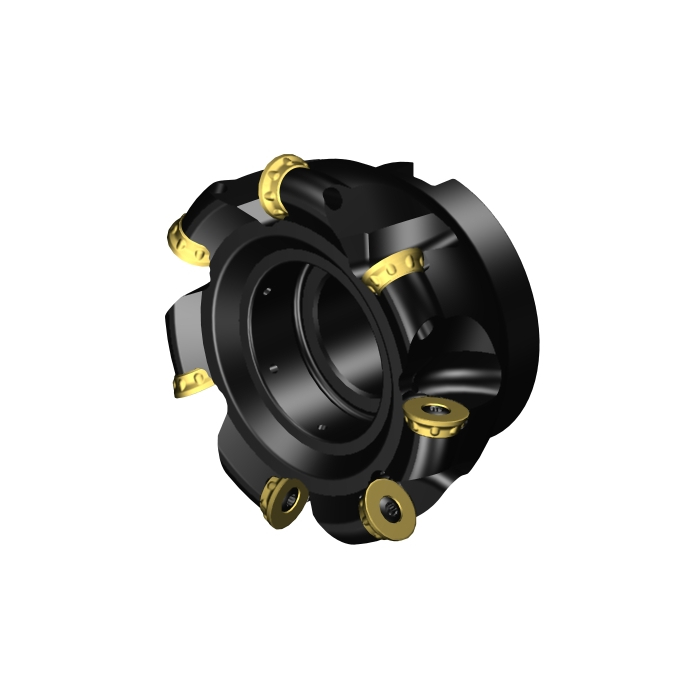

Sandvik Coromant R300-125Q40-20M CoroMill™ 300 face milling cutter

R 17 179,85 inc. vat
In stock
SKU
5744465
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
More Information
CP - Coolant Pressure 3000000Pa
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 63mm
TQ - Torque 7.5Nm
RPMX - Rotational Speed Maximum 107681/min
WT - Weight Of Item 2.508kg
OAL - Overall Length 63mm
OHX - Maximum Overhang 63mm
RMPX - Maximum Ramping Angle 3.5deg
GAMO - Orthogonal Rake Angle 7deg
LAMS - Inclination Angle -2deg
AN - Clearance Angle Major 15deg
IC - Inscribed Circle Diameter 20mm
RE - Corner Radius 10mm
Insert Thickness 6.48mm
APMX - Depth Of Cut Maximum 10mm
DC - Cutting Diameter 105mm
DCF - Cutting Diameter Face Contact 105mm
GAMF - Radial Rake Angle 2.00000003deg
GAMP - Axial Rake Angle 6.99999995deg
DCX - Maximum Cutting Diameter 125mm
AZ - Maximum Plunge Depth 6mm
ORDCODE R300-125Q40-20M
ADINTMS - Adaptive Interface Machine Direction M_FDA1B1_G4000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 13:45:00.000
STDLET - Standard Letter B
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MD2060_1
Hand R
MIID - Master Insert Identification R300-2060..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 20
CICT - Cutting Item Count 7
ZEFP - Peripheral Effective Cutting Edge Count 7
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
