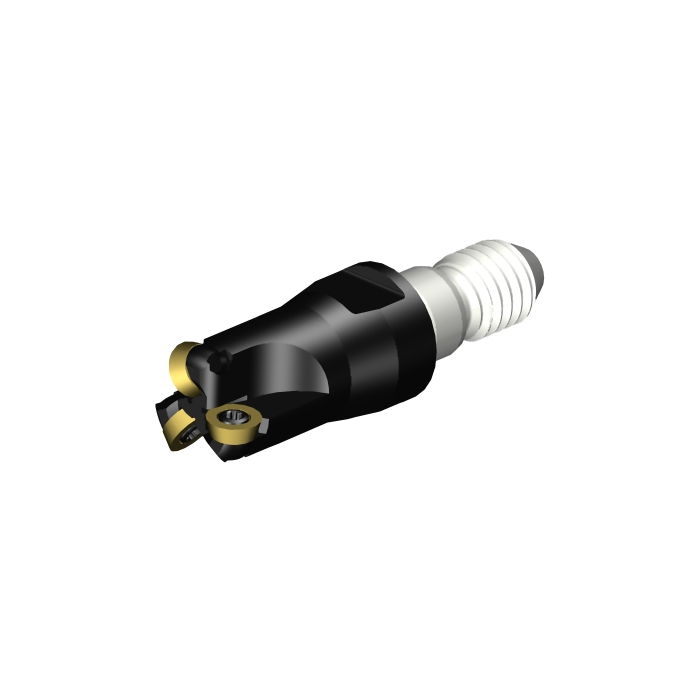

Sandvik Coromant R300-12T08-05M CoroMill™ 300 face milling cutter

Name: Sandvik Coromant R300-12T08-05M CoroMill™ 300 face milling cutter
SKU: 5744486
Price: 4436.70 ZAR
Availability: OutOfStock

R 4 436,70 inc. vat

Out of stock

SKU

5744486

CoroMill® 300 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 300 face milling cutter

More Information
DCON - Connection Diameter	12.8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	25mm
BD - Body Diameter	11.05mm
LB - Body Length	18mm
TQ - Torque	0.6Nm
RPMX - Rotational Speed Maximum	91001/min
WT - Weight Of Item	0.022kg
OAL - Overall Length	42.5mm
OHX - Maximum Overhang	25mm
RMPX - Maximum Ramping Angle	10deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	5mm
RE - Corner Radius	2.5mm
Insert Thickness	1.7mm
APMX - Depth Of Cut Maximum	2.5mm
DC - Cutting Diameter	7mm
DCF - Cutting Diameter Face Contact	7mm
GAMF - Radial Rake Angle	0deg
GAMP - Axial Rake Angle	0deg
DCX - Maximum Cutting Diameter	12mm
AZ - Maximum Plunge Depth	1mm
ORDCODE	R300-12T08-05M
ADINTMS - Adaptive Interface Machine Direction	M_SAC03_A0080_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:46:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MD0517_1
Hand	R
MIID - Master Insert Identification	R300-0517..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	05
TDZ - Thread Diameter Size	M 8
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
