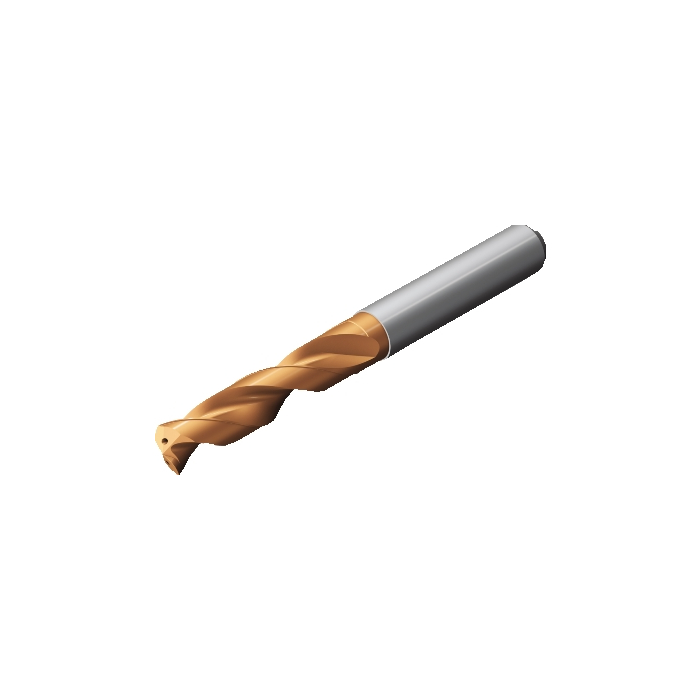

Sandvik Coromant R846-0900-30-A1A 1220 CoroDrill® Delta-C solid carbide drill

R 2 741,60 inc. vat
In stock
SKU
5748758
CoroDrill® Delta-C solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® Delta-C solid carbide drill
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 10mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 87.5mm
BD - Body Diameter 9mm
LB - Body Length 49mm
RPMX - Rotational Speed Maximum 17681/min
WT - Weight Of Item 0.079kg
OAL - Overall Length 89mm
OHX - Maximum Overhang 47.4781mm
LSC - Clamping Length 40mm
GAMO - Orthogonal Rake Angle 20.08deg
LU - Usable Length 28.5mm
DC - Cutting Diameter 9mm
FHA - Flute Helix Angle 29.487581deg
ULDR - Usable Length Diameter Ratio 3.166666666667
PL - Point Length 1.5mm
LCF - Chip Flute Length 47mm
SIG - Point Angle 140deg
ORDCODE R846-0900-30-A1A 1220
ADINTMS - Adaptive Interface Machine Direction M_CYLR_G1000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 4
BMC - Body Material Code 2
CHANGEDATE 2021-12-21 18:45:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1220
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6537 K
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
