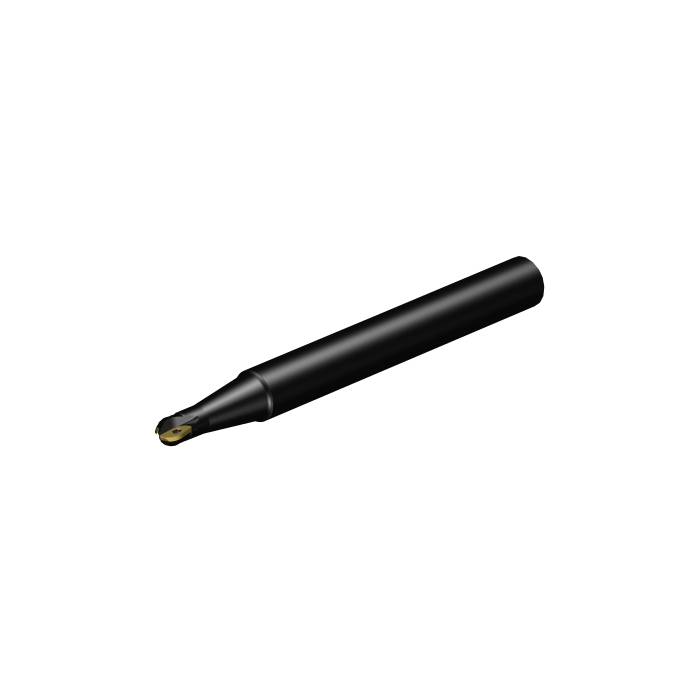

Sandvik Coromant RA216-10O16-038 CoroMill™ 216 ball nose milling cutter
R 5 807,50
inc. vat
In stock
SKU
5739150
CoroMill® 216 ball nose milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 216 ball nose milling cutter
| DCON - Connection Diameter | 15.875mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 152.4mm |
| BD - Body Diameter | 8.7mm |
| LB - Body Length | 15.875mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 0.6Nm |
| RPMX - Rotational Speed Maximum | 134001/min |
| WT - Weight Of Item | 0.201kg |
| OAL - Overall Length | 152.4mm |
| OHX - Maximum Overhang | 104.4mm |
| LSC - Clamping Length | 48mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 85deg |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 10deg |
| AN - Clearance Angle Major | 9deg |
| Insert Thickness | 1.7mm |
| LU - Usable Length | 18.2mm |
| APMX - Depth Of Cut Maximum | 7.874mm |
| DC - Cutting Diameter | 9.525mm |
| DCF - Cutting Diameter Face Contact | 0mm |
| DCX - Maximum Cutting Diameter | 9.525mm |
| AZ - Maximum Plunge Depth | 4.7625mm |
| CEMR - Cutting Edge Major Radius | 4.7625mm |
| PRFRAD - Profile Radius | 4.7625mm |
| ORDCODE | RA216-10O16-038 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R6250_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-14 13:26:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MQ1002_1 |
| Hand | R |
| MIID - Master Insert Identification | RA216-10 02 |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 9.525 |
| TCDCON - Connection Diameter Tolerance | h8 |
| CICT - Cutting Item Count | 2 |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| CPDF - Cutting Pitch Differential | False |
