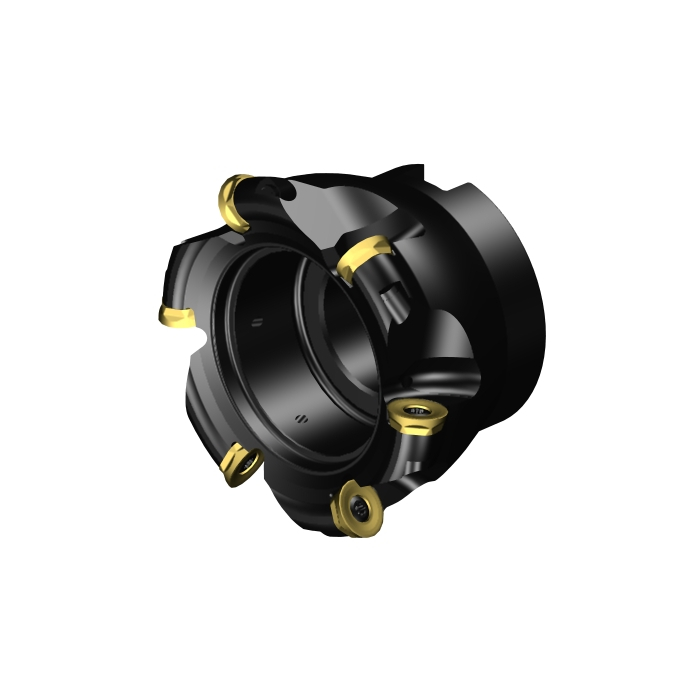

Sandvik Coromant RA300-102R38-16M CoroMill™ 300 face milling cutter

R 13 265,25 inc. vat
In stock
SKU
5739457
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
More Information
CP - Coolant Pressure 3000000Pa
DCON - Connection Diameter 38.1mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 63mm
TQ - Torque 5Nm
RPMX - Rotational Speed Maximum 132001/min
WT - Weight Of Item 1.458kg
OAL - Overall Length 63mm
OHX - Maximum Overhang 63mm
RMPX - Maximum Ramping Angle 2.5deg
GAMO - Orthogonal Rake Angle 7deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 15deg
IC - Inscribed Circle Diameter 16mm
RE - Corner Radius 8mm
Insert Thickness 4.7625mm
APMX - Depth Of Cut Maximum 8mm
DC - Cutting Diameter 85.6mm
DCF - Cutting Diameter Face Contact 85.6mm
GAMF - Radial Rake Angle 0deg
GAMP - Axial Rake Angle 6.99999995deg
DCX - Maximum Cutting Diameter 101.6mm
AZ - Maximum Plunge Depth 3.8mm
ORDCODE RA300-102R38-16M
ADINTMS - Adaptive Interface Machine Direction M_FDA1B1_S1500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 13:41:00.000
STDLET - Standard Letter B
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MD1648_1
Hand R
MIID - Master Insert Identification R300-1648..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 16
CICT - Cutting Item Count 6
ZEFP - Peripheral Effective Cutting Edge Count 6
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
