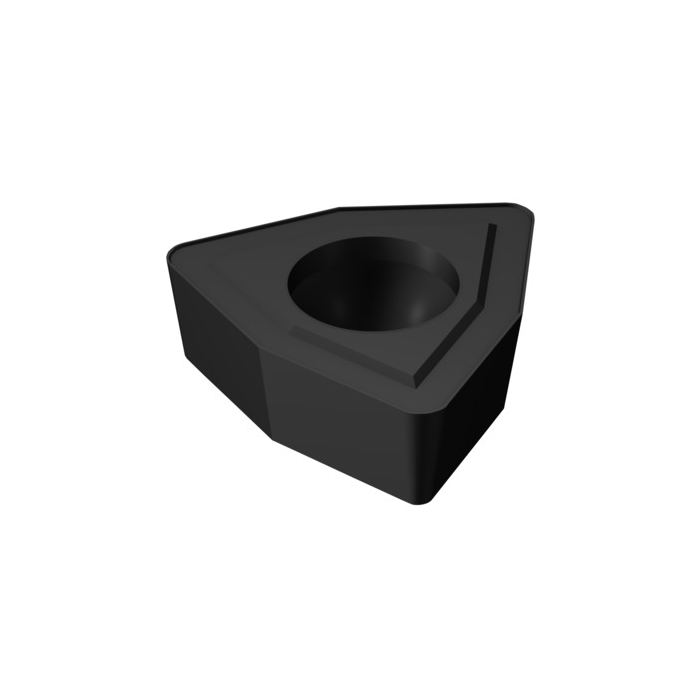

Sandvik Coromant WCMX 05 03 04R-WM 3040 Coromant U insert for drilling
R 303,60
inc. vat
In stock
SKU
5756108
Coromant U insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant U insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 2.2g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 7.9375mm |
| RE - Corner Radius | 0.4mm |
| Insert Thickness | 3.175mm |
| D1 - Fixing Hole Diameter | 3.2mm |
| L - Cutting Edge Length | 5.4296mm |
| BS - Wiper Edge Length | 0.3mm |
| GAN - Insert Rake Angle | 15deg |
| ORDCODE | WCMX 05 03 04R-WM 3040 |
| CHANGEDATE | 2022-09-21 12:28:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | W |
| SSC - Insert Seat Size Code | 05 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DD0503_1 |
| Grade | 3040 |
| COATING | CVD TiCN+Al2O3 |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | WM |
| INSUC - Insert Usage Code | P |
| CEDC - Cutting Edge Count | 3 |
| WEP - Wiper Edge Property | True |
