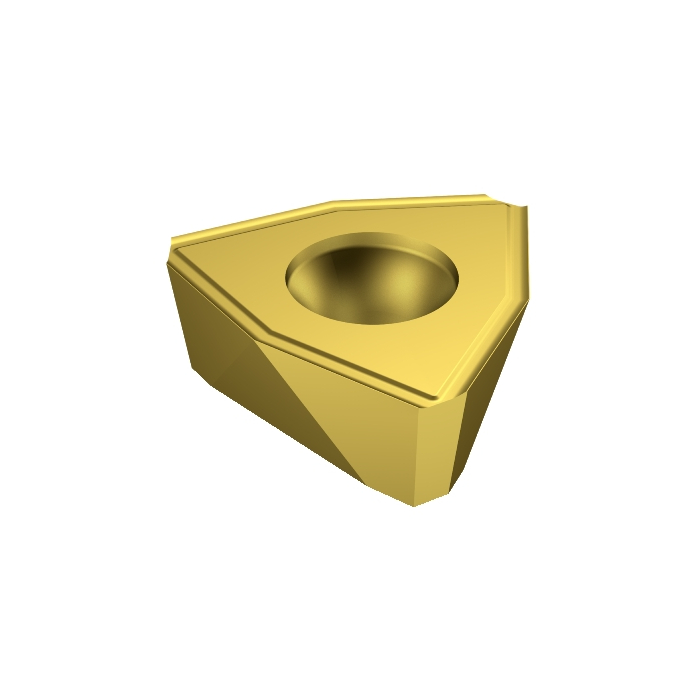

Sandvik Coromant WCMX 05 03 08-58 235 Coromant U insert for drilling
Next
Sandvik Coromant WCMX 05 03 04R-WM 3040 Coromant U insert for drilling
Previous
R 264,50
inc. vat
In stock
SKU
5756110
Coromant U insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant U insert for drilling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 2.2g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 7.9375mm |
RE - Corner Radius | 0.8mm |
Insert Thickness | 3.175mm |
D1 - Fixing Hole Diameter | 3.2mm |
L - Cutting Edge Length | 5.4296mm |
BN - Face Land Width | 0.07mm |
GB - Face Land Angle | 0deg |
GAN - Insert Rake Angle | 15deg |
ORDCODE | WCMX 05 03 08-56 235 |
CHANGEDATE | 2022-09-21 12:28:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 05 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DD0503P_1 |
Grade | 235 |
COATING | CVD TiCN+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 56 |
INSUC - Insert Usage Code | P |
CEDC - Cutting Edge Count | 3 |
WEP - Wiper Edge Property | False |
