R 74 774,15
inc. vat
Out of stock
SKU
5781777

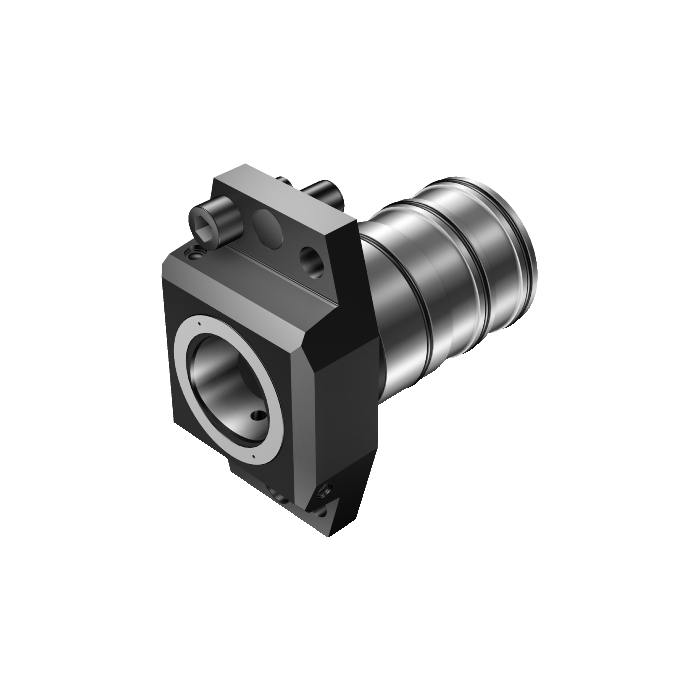

Hydraulic clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
Hydraulic clamping unit
CP - Coolant Pressure | 15000000Pa |
---|---|
DFC - Functional Diameter | 72mm |
DCON - Connection Diameter | 100mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 50mm |
WT - Weight Of Item | 15.8kg |
OAL - Overall Length | 214mm |
OHX - Maximum Overhang | 50mm |
LSC - Clamping Length | 160mm |
DMIN - Minimum Bore Diameter | 700mm |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 0mm |
HF - Functional Height | 0mm |
OAH - Overall Height | 220mm |
OAW - Overall Width | 126mm |
HTB - Body Height | 130mm |
ORDCODE | C10-NC5010-00050 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_H1050_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C1000_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-01 14:19:00.000 |
STDNO - Standard Number | ISO26623-2 |
Hand | N |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
LOCAP - Location Aid Property | False |
