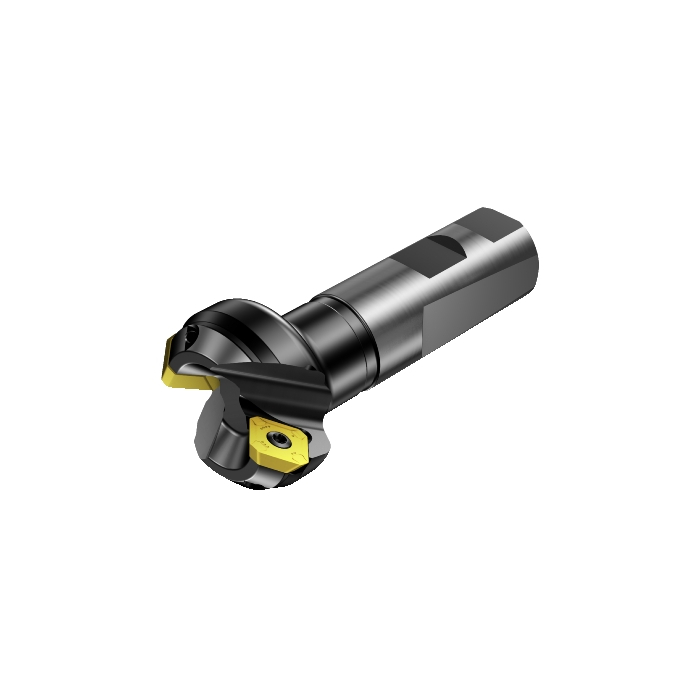

Sandvik Coromant RA245-038MN32-12M CoroMill™ 245 face milling cutter

Name: Sandvik Coromant RA245-038MN32-12M CoroMill™ 245 face milling cutter
SKU: 5738664
Price: 7392.20 ZAR
Availability: InStock

R 7 392,20 inc. vat

In stock

SKU

5738664

CoroMill® 245 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 245 face milling cutter

More Information
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	98mm
LB - Body Length	40mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	182501/min
WT - Weight Of Item	0.82kg
OAL - Overall Length	98mm
OHX - Maximum Overhang	40mm
KAPR - Tool Cutting Edge Angle	45deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	4.8deg
LAMS - Inclination Angle	23deg
AN - Clearance Angle Major	20deg
IC - Inscribed Circle Diameter	13.4mm
Insert Thickness	3.96875mm
H - Shank Height	29.36mm
APMX - Depth Of Cut Maximum	6.096mm
DC - Cutting Diameter	38.1mm
DCF - Cutting Diameter Face Contact	38.1mm
GAMF - Radial Rake Angle	-13.53752788deg
GAMP - Axial Rake Angle	19.77485279deg
DCX - Maximum Cutting Diameter	50.5968mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	RA245-038MN32-12M
ADINTMS - Adaptive Interface Machine Direction	M_CYLWNW_S1250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-05-04 11:45:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MB12T3_1
Hand	R
MIID - Master Insert Identification	R245-12T3..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	12
TCDCON - Connection Diameter Tolerance	h6
CICT - Cutting Item Count	4
ZEFP - Peripheral Effective Cutting Edge Count	4
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
