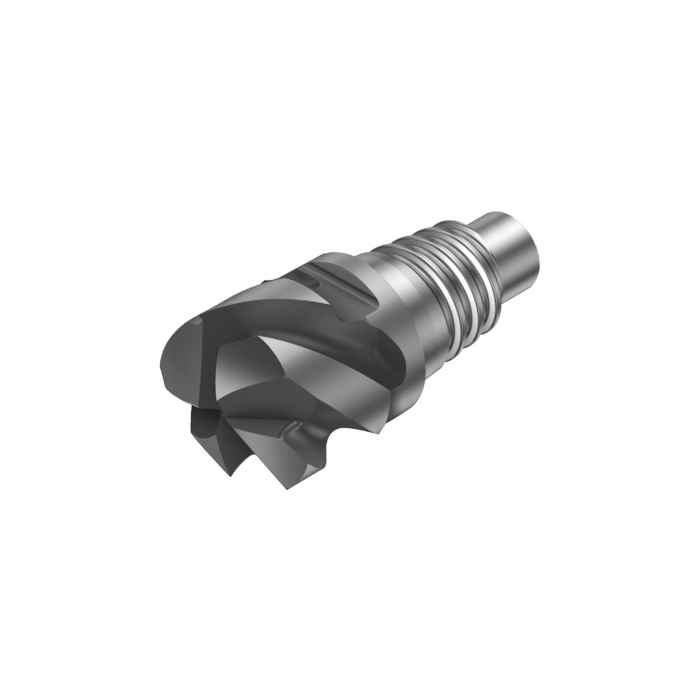

Sandvik Coromant 316-20HM450-20020P 1730 CoroMill™ 316 solid carbide head for High Feed Face milling

R 2 780,70 inc. vat
In stock
SKU
7611781
CoroMill® 316 solid carbide head for High Feed Face milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for High Feed Face milling
More Information
DCON - Connection Diameter 19.3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 21.3mm
LB - Body Length 21.3mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.121kg
OAL - Overall Length 40.8mm
OHX - Maximum Overhang 21.3mm
KAPR - Tool Cutting Edge Angle 31.57deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 10mm
LU - Usable Length 21.3mm
APMX - Depth Of Cut Maximum 1.3mm
DC - Cutting Diameter 20mm
DCF - Cutting Diameter Face Contact 8mm
DN - Neck Diameter 19.3mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle -18deg
GAMP - Axial Rake Angle 6deg
ULDR - Usable Length Diameter Ratio 1.065
REEQ - Corner Radius Equivalent 3.07mm
ORDCODE 316-20HM450-20020P 1730
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0200_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-09-13 12:52:00.000
Hand R
Grade 1730
COATING PVD AlTiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential False
