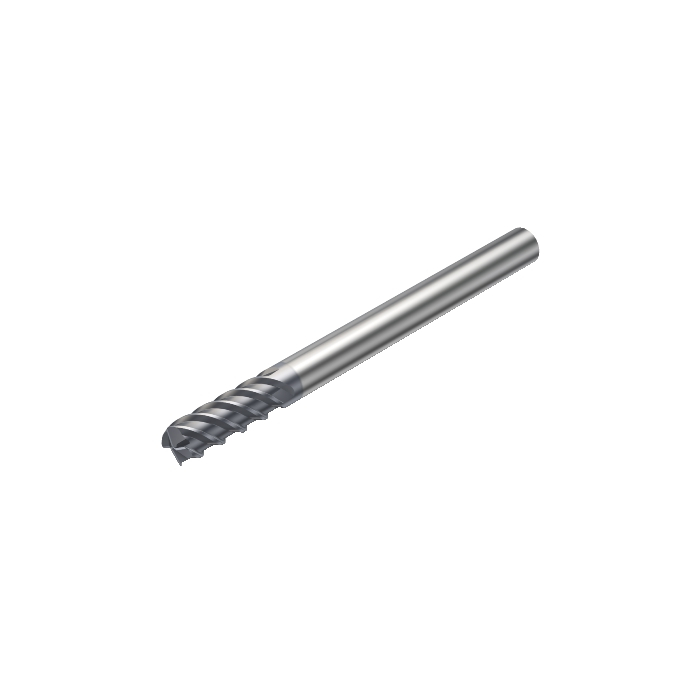

Sandvik Coromant R215.H4-12050DAK08P 1620 CoroMill™ Plura solid carbide end mill for High Feed Face milling

Name: Sandvik Coromant R215.H4-12050DAK08P 1620 CoroMill™ Plura solid carbide end mill for High Feed Face milling
SKU: 5847803
Price: 3562.70 ZAR
Availability: InStock

Be the first to review this product

R 3 562,70 inc. vat

In stock

SKU

5847803

CoroMill® Plura solid carbide end mill for High Feed Face milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for High Feed Face milling

More Information

More Information
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	93mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.16kg
OAL - Overall Length	93mm
OHX - Maximum Overhang	48mm
KAPR - Tool Cutting Edge Angle	31.57deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	6mm
LU - Usable Length	12mm
APMX - Depth Of Cut Maximum	0.7mm
DC - Cutting Diameter	12mm
DCF - Cutting Diameter Face Contact	4.5mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	-18deg
GAMP - Axial Rake Angle	6deg
ULDR - Usable Length Diameter Ratio	1
REEQ - Corner Radius Equivalent	2.1mm
ORDCODE	R215.H4-12050DAK08P 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-05-10 17:06:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h8
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	False
