Sandvik Coromant SDKX 15 06 08 H13A Auto Cylinder insert for boring
R 440,45
inc. vat
In stock
SKU
5749594

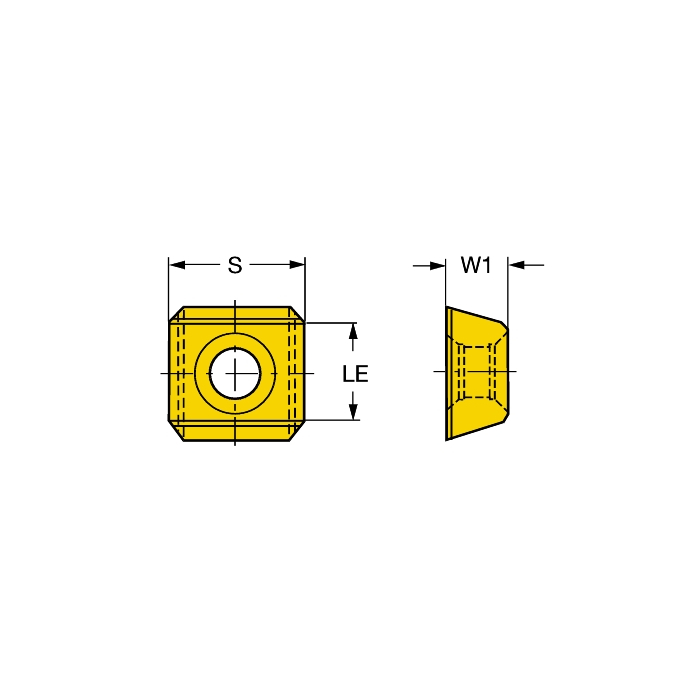

Auto Cylinder insert for boring
Reliable nationwide shipping
Delivery in 4 - 5 days
Auto Cylinder insert for boring
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 13.6g |
| AN - Clearance Angle Major | 15deg |
| IC - Inscribed Circle Diameter | 15.875mm |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 5.6mm |
| LE - Cutting Edge Effective Length | 11mm |
| L - Cutting Edge Length | 15.875mm |
| ORDCODE | SDKX 15 06 08 H13A |
| CHANGEDATE | 2021-12-17 19:05:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 15 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_SD1506ZN_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
