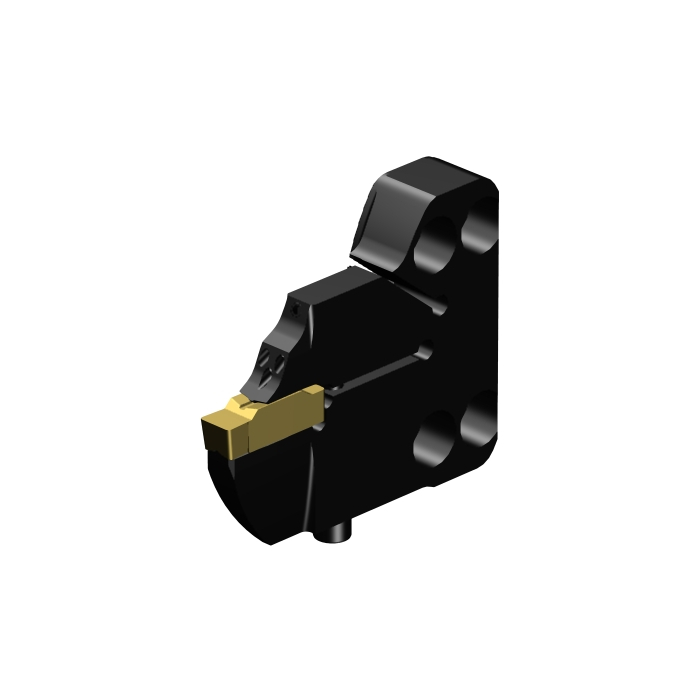

Sandvik Coromant SL70-L123M50A-HP CoroCut™ 1-2 head for grooving

Name: Sandvik Coromant SL70-L123M50A-HP CoroCut™ 1-2 head for grooving
SKU: 5857809
Price: 7537.10 ZAR
Availability: InStock

R 7 537,10 inc. vat

In stock

SKU

5857809

CoroCut® 1-2 head for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 head for grooving

More Information
CP - Coolant Pressure	8000000Pa
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	17.5mm
BD - Body Diameter	70mm
TQ - Torque	5Nm
WT - Weight Of Item	0.358kg
OAL - Overall Length	25.3mm
OHX - Maximum Overhang	12mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	100mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	71mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	7.05mm
CW - Cutting Width	11mm
CDX - Cutting Depth Maximum	50mm
DAXN - Minimum Axial Groove Outside Diameter	450mm
WSC - Clamping Width	70mm
ORDCODE	SL70-L123M50A-HP
ADINTMS - Adaptive Interface Machine Direction	M_SLHDS_C0700_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	7
BMC - Body Material Code	1
CHANGEDATE	2022-08-25 08:29:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCM1_1
Hand	L
MIID - Master Insert Identification	N123M1-1100-0008-GM
SSC - Insert Seat Size Code	M
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
