Sandvik Coromant SSDCL 2020K 12 CoroTurn™ 107 shank tool for turning

Name: Sandvik Coromant SSDCL 2020K 12 CoroTurn™ 107 shank tool for turning
SKU: 5751173
Price: 1875.65 ZAR
Availability: InStock

R 1 875,65 inc. vat

In stock

SKU

5751173

CoroTurn® 107 shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 shank tool for turning

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	116.7mm
TQ - Torque	3Nm
WT - Weight Of Item	0.36kg
OAL - Overall Length	125.02mm
OHX - Maximum Overhang	13.9mm
LSC - Clamping Length	102.8mm
KAPR - Tool Cutting Edge Angle	45deg
RMPX - Maximum Ramping Angle	0deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	22mm
HF - Functional Height	20mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	0.79375mm
Insert Thickness	4.7625mm
H - Shank Height	20mm
LPR - Protruding Length	125.02mm
B - Shank Width	20mm
ORDCODE	SSDCL 2020K 12
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2020_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:53:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_SC1204_1
Hand	L

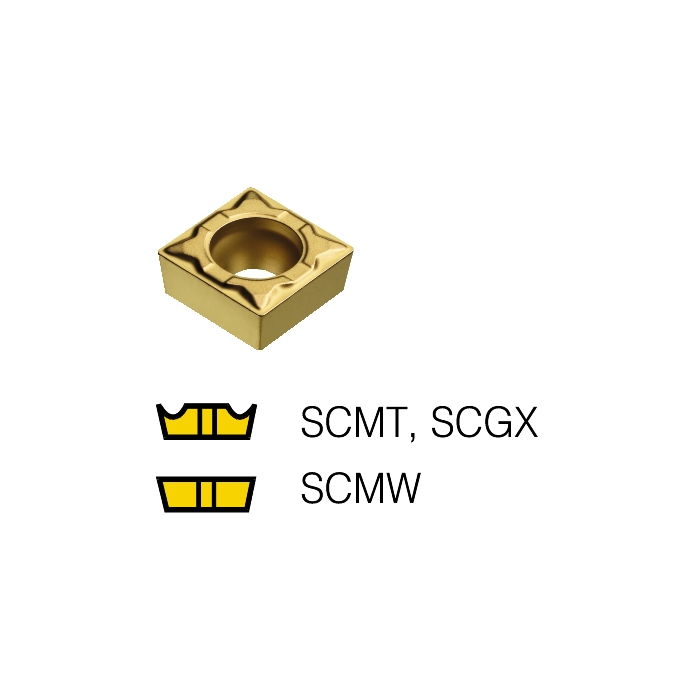

MIID - Master Insert Identification	SCMT 12 04 08
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
