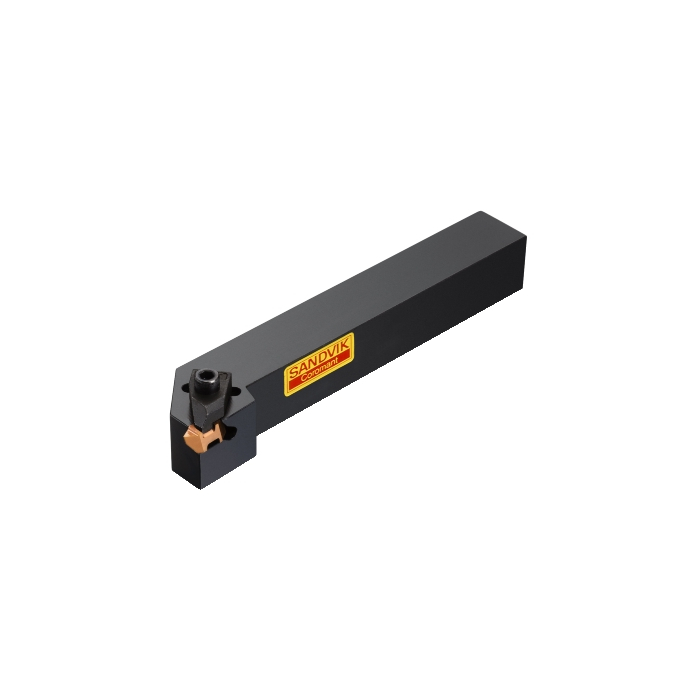

Sandvik Coromant TLSR-102 Top Lok shank tool for parting & grooving

R 2 188,45 inc. vat
In stock
SKU
5753227
Top Lok shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
Top Lok shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 114.3mm
TQ - Torque 3Nm
WT - Weight Of Item 0.23kg
OAL - Overall Length 114.3mm
OHX - Maximum Overhang 22.352mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 19.05mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 5.5626mm
H - Shank Height 15.875mm
B - Shank Width 15.875mm
CDX - Cutting Depth Maximum 3.175mm
W1 - Insert Width 3.81mm
ORDCODE TLSR-102
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B1010_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2021-12-20 23:30:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CL2R_1
Hand R
MIID - Master Insert Identification TLG-2125R
SSC - Insert Seat Size Code 2
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
