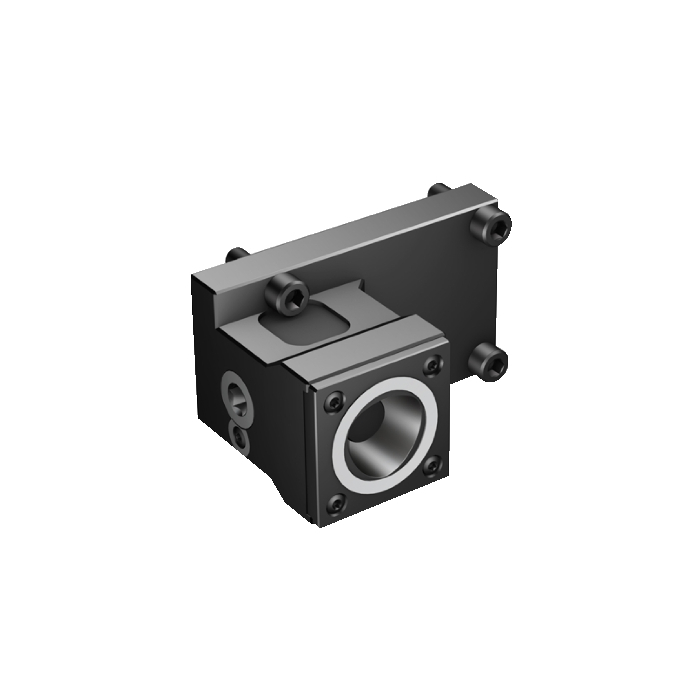

Sandvik Coromant C5-TRE-MS60A-HP Manual clamping unit for Mori Seiki machines

Name: Sandvik Coromant C5-TRE-MS60A-HP Manual clamping unit for Mori Seiki machines
SKU: 6866744
Price: 27175.65 ZAR
Availability: InStock

Be the first to review this product

R 27 175,65 inc. vat

In stock

SKU

6866744

Manual clamping unit for Mori Seiki machines

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Manual clamping unit for Mori Seiki machines

More Information

More Information
CP - Coolant Pressure	20000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	95mm
TQ - Torque	70Nm
WT - Weight Of Item	6.43kg
OAL - Overall Length	110mm
OHX - Maximum Overhang	95mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	33mm
HF - Functional Height	0mm
LPR - Protruding Length	95mm
OAH - Overall Height	108mm
OAW - Overall Width	130mm
ORDCODE	C5-TRE-MS60A-HP
ADINTMS - Adaptive Interface Machine Direction	M_FLC02CN_C060N_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0500_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:26:00.000
STDNO - Standard Number	ISO26623-2
Hand	R
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
