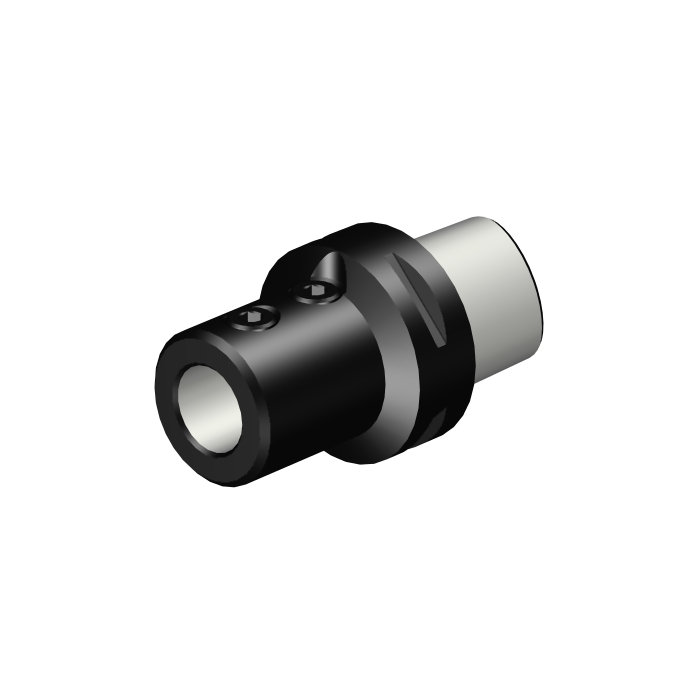

Sandvik Coromant C6-391.27-25 070A Coromant Capto™ to ISO 9766 adaptor

R 5 920,20 inc. vat
In stock
SKU
5729157
Coromant Capto® to ISO 9766 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to ISO 9766 adaptor
More Information
CP - Coolant Pressure 2000000Pa
DFC - Functional Diameter 44mm
DCON - Connection Diameter 25mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 72mm
BD - Body Diameter 63mm
LB - Body Length 72mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 20Nm
RPMX - Rotational Speed Maximum 200001/min
WT - Weight Of Item 1.153kg
OAL - Overall Length 110mm
OHX - Maximum Overhang 72mm
LSC - Clamping Length 57.5mm
ORDCODE C6-391.27-25 070A
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction W_CYLISO_G2500_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2022-06-29 13:06:00.000
STDNO - Standard Number ISO26623-1
DPC - Damping Property False
DCP - Data Chip Provision False
BBD - Balanced By Design False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
